Speaker - Headliner - LH - Remove And Replace: Remove

  1. Open the LH and RH front doors.
  2. Lower the LH and RH front windows.
  3. Open the LH and RH falcon wing doors.
  4. Move the LH front seat rearward.
  5. Remove the LH sun visor bezel A-pillar trim. See Trim - A-Pillar - Sun Visor Bezel - LH (Remove and Replace) .
  6. Remove the bolts (x2), screw, and nut that attach the LH upper A-pillar trim to the vehicle.
    NOTE: Discard the nut after removal.

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • 10 mm hex
    • 13 mm socket
    • Flex head ratchet/flex head torque wrench
    • Torx T20 socket

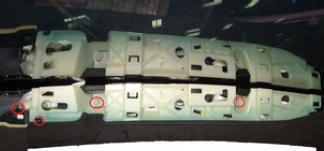

    G15409025Courtesy of TESLA, INC.
  7. Move the LH upper A-pillar trim to gain access to the headliner.

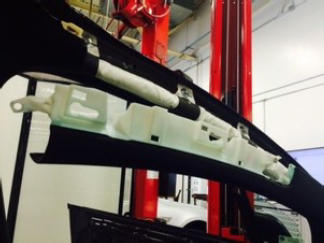

    G15409026Courtesy of TESLA, INC.
  8. Remove the screw that attaches the LH front end of the headliner to the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • Flex head ratchet/flex head torque wrench
    • Torx T20 socket

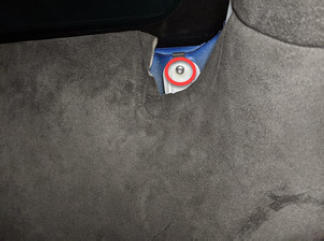

    G15409027Courtesy of TESLA, INC.
  9. Move the LH front seat forward.
  10. Release the LH front door seal from the B-pillar trim.

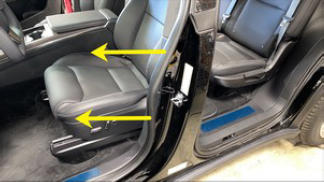

    G15409028Courtesy of TESLA, INC.
  11. Remove the LH front sill panel trim. See Trim - Sill Panel - Front - LH (Remove and Replace) .
  12. Remove the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace) .
  13. Remove the LH lower B-pillar trim. See Trim - B-Pillar - Lower - LH (Remove and Replace) .
  14. Release the clips (x3) and magnets (x2) that attach the LH upper B-pillar trim to the B-pillar, and then disconnect the LH falcon wing door button electrical connector.

    Tip: Use of the following tool(s) is recommended:

    • Clip pry tool
    • Plastic trim tool
    • Pocket screwdriver

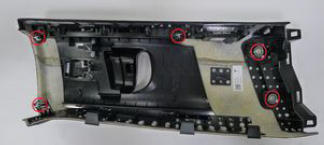

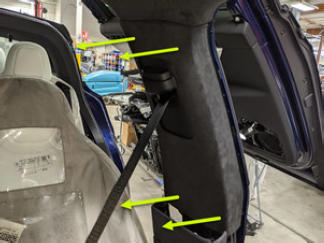

    G15409029Courtesy of TESLA, INC.

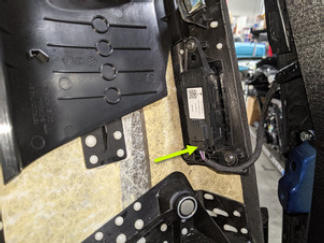

    G15409030Courtesy of TESLA, INC.
    G15409031Courtesy of TESLA, INC.
  15. Move the LH upper B-pillar trim aside.

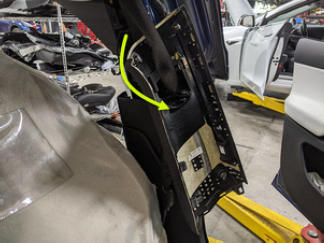

    G15409032Courtesy of TESLA, INC.
  16. Open the liftgate.
  17. Fold the LH 3rd row seat back downwards.
  18. Remove the LH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace) .
  19. Remove the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace) .
  20. Remove the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace) .
  21. Remove the LH and RH rear coat hooks. See Coat Hook - Rear - LH (Remove and Replace) .
  22. Partially release the clips (x11) that attach the LH front headliner to the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • Clip pry tool
    • Plastic trim tool

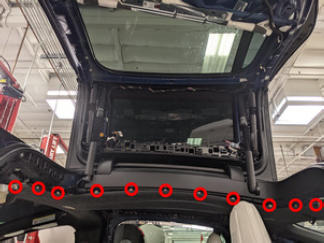

    G15409033Courtesy of TESLA, INC.
  23. Disconnect the LH headliner speaker connector.

    Tip: Use of the following tool(s) is recommended:

    • Pocket screwdriver

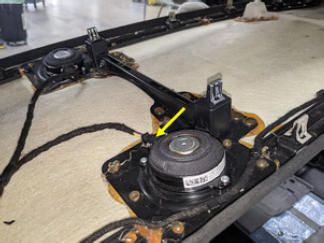

    G15409034Courtesy of TESLA, INC.
  24. Remove the bolts (x3) that attach the LH headliner speaker to the headliner, and then remove the speaker from the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • Mini ratchet bit set

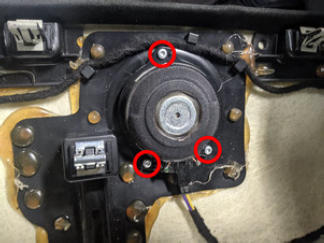

    G15409035Courtesy of TESLA, INC.
