Speaker - Front Door - LH - Remove And Replace: Install

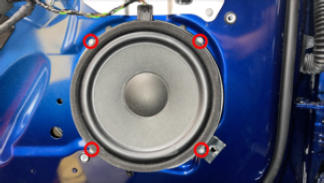

Position the LH front door speaker into the LH front door, and then install the bolts (x4) that attach the speaker to the door.
3.5 N.m (2.6 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 1/4 socket
Courtesy of TESLA, INC.
Connect the LH front door speaker electrical connector.

Courtesy of TESLA, INC.
Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace) .
Install the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace) .
Close the LH front door.

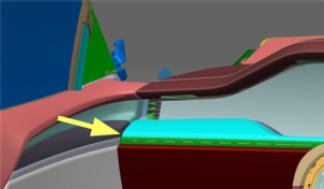

Check the gap fitment of the LH front door trim decor to instrument panel decor.
NOTE: Refer to CVIS for current specifications.

Courtesy of TESLA, INC.
Open the LH front door.

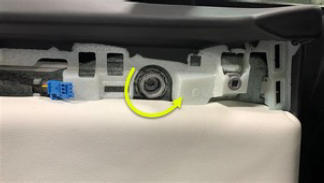

Adjust the LH front door trim as needed.
6 N.m (4.4 ft-lbs)

NOTE: Loosen the T30 screw, and then rotate the 18 mm nut to achieve desired specification. Rotate the nut clockwise to close gap; rotate counter-clockwise to tighten the gap.

NOTE: Torque the T30 fastener to lock the adjustment.

Tip: Use of the following tool(s) is recommended:
- 18 mm socket
- Torx T30 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace) .
Raise the LH front window and close the LH front door.
