Speaker - Dash - LH - Remove And Replace: Remove

  1. Remove the IP sub-assembly. See Sub Assembly - Instrument Panel (Remove and Replace)

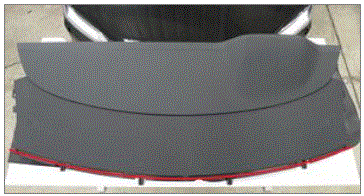

  2. Remove and discard the IP sub-assembly seal.
    G00660991Courtesy of TESLA, INC.

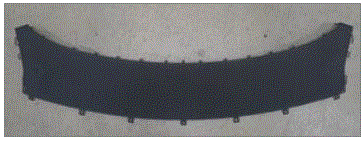

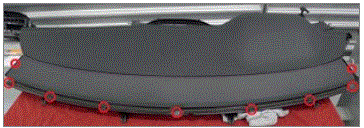

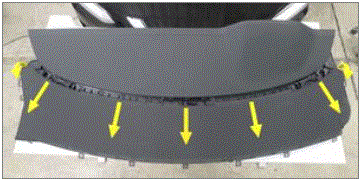

  3. Remove the screws (x9) that attach the dash speaker mesh to the IP sub-assembly, then remove the dash speaker mesh.

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • Flex head ratchet/flex head torque wrench
    • 2 in extension

    G00660992Courtesy of TESLA, INC.
    G00660993Courtesy of TESLA, INC.
    G00660994Courtesy of TESLA, INC.

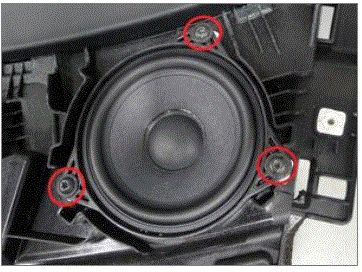

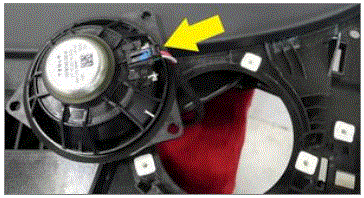

  4. Remove the screws (x3) and disconnect the electrical connector that attach LH dash speaker to the IP sub-assembly.
    • Torx T20 socket
    • Flex head ratchet/flex head torque wrench
    G00660995Courtesy of TESLA, INC.
    G00660996Courtesy of TESLA, INC.
