Amplifier - Audio - External - Remove And Replace: Install

  1. Position the external audio amplifier on the vehicle, and then install the nuts (x2) that attach the amplifier to the vehicle.

    9 N.m (6.6 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
    G15408806Courtesy of TESLA, INC.
  2. Install the bolt that attaches the amplifier to the vehicle.

    9 N.m (6.6 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench

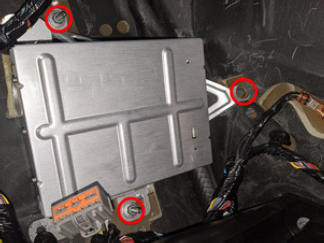

    G15408807Courtesy of TESLA, INC.
  3. Connect the external audio amplifier connectors (x3).

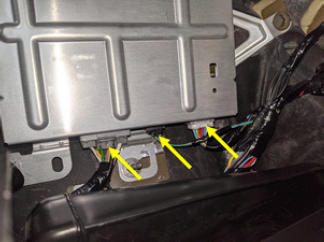

    G15408808Courtesy of TESLA, INC.
  4. Install the clips (x2) that attach the RH body harness to the external audio amplifier.

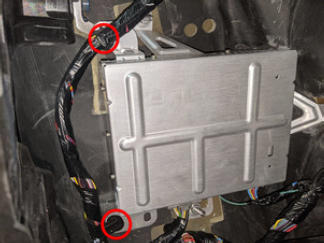

    G15408809Courtesy of TESLA, INC.
  5. Install the RH trunk side trim. See Trim - Side - Trunk - RH (Remove and Replace) .
  6. Install the RH trunk tie down on the RH side trim carpet.

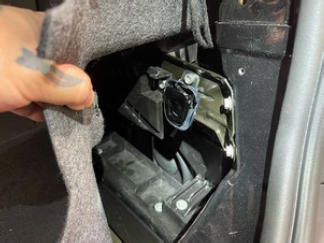

    G15408810Courtesy of TESLA, INC.

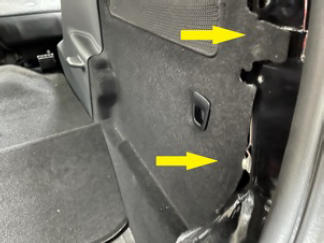

    G15408811Courtesy of TESLA, INC.
  7. Install the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace) .
  8. Install the RH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace) .
  9. Install the RH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace) .
  10. Install the clips (x2) and push clips (x4) that attach the rear wall load support to the vehicle.

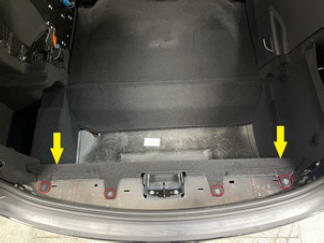

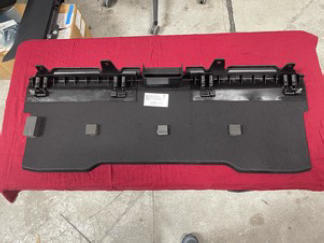

    G15408812Courtesy of TESLA, INC.

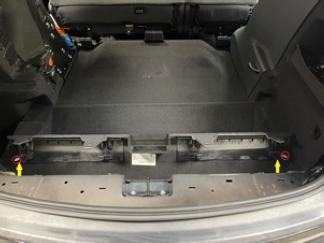

    G15408813Courtesy of TESLA, INC.
    G15408814Courtesy of TESLA, INC.
  11. Install the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace) .
  12. Install the LH and RH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace) .
  13. Install the trunk gap hider. See Gap Hider - Trunk (5 Seat) (Remove and Replace) .
  14. Install the clip and tabs (x3) that attach the RH trunk side mini nub to the vehicle.

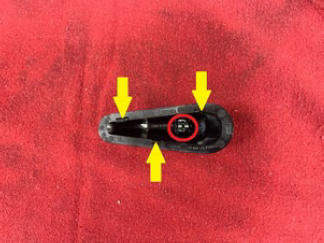

    G15408815Courtesy of TESLA, INC.

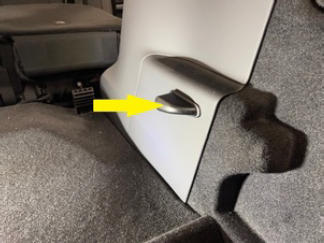

    G15408816Courtesy of TESLA, INC.
  15. Install the front trunk load floor. See Trunk Load Floor - Front (Remove and Replace) .
  16. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
  17. Connect LV power. See LV Power (Disconnect and Connect) .
  18. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  19. Close the liftgate.
  20. Unfold the 2nd row 40 and 60 seats to original position.
  21. Move the LH and RH front seats forward.
  22. Calibrate the rear doors.
    NOTE: If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate  to calibrate the rear doors.
  23. Close the LH and RH falcon wing doors.
  24. Raise the LH and RH front windows.
  25. Close the LH and RH front doors.
