Antenna - GPS - Remove And Replace: Remove
- Open the LH front door and lower the LH front window.
- Remove the lower camera cover. See Camera Cover - Lower (Remove And Replace)
- Remove the rear view mirror. See Mirror - Rear View (Remove and Replace) .

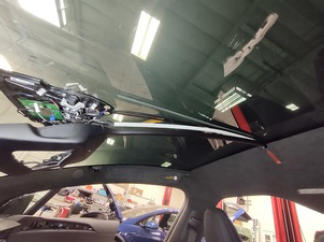

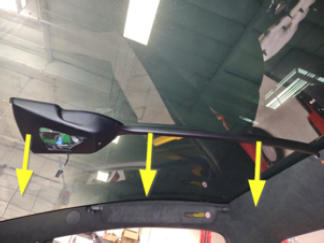

- Carefully release the clips (x4) that attach the rear view mirror harness cover to the vehicle, and then lower the cover to gain access to the GPS antenna.

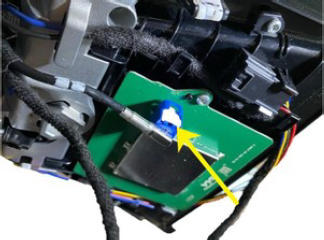

- Disconnect the GPS antenna electrical connector.

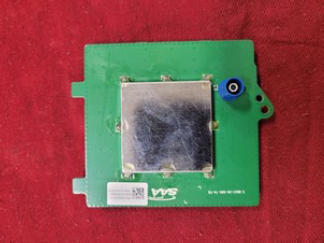

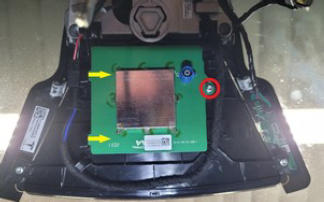

- Remove the bolt and release the tabs (x2) that attach the GPS antenna to the vehicle, and then remove the antenna from the vehicle.
1 N.m (.7 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T10 bit
