Antenna - GPS - Remove And Replace: Install

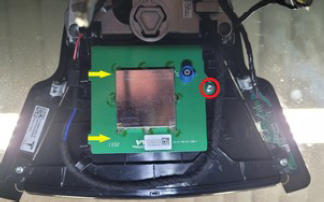

Position the GPS antenna into the vehicle, and then install the bolt and secure the tabs (x2) that attach the antenna to the vehicle.
1 N.m (.7 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T10 bit
Courtesy of TESLA, INC.

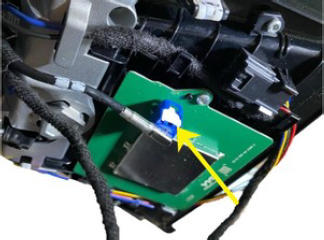

Connect the GPS antenna electrical connector.

Courtesy of TESLA, INC.

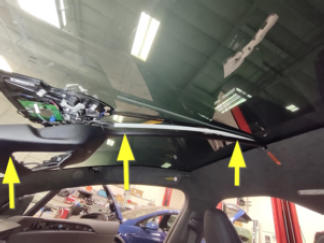

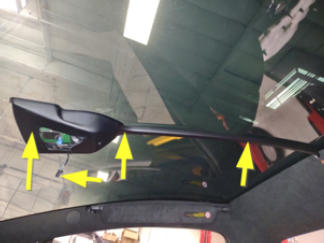

Secure the clips (x4) that attach the upper portion of the rear view mirror cover to the vehicle.
NOTE: Make sure the rear view mirror harness is routed so that it hangs freely on the outside and is not pinched between the cover and glare shield assembly.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the rear view mirror. See Mirror - Rear View (Remove and Replace) .
Install the lower camera cover. See Camera Cover - Lower (Remove And Replace)
Raise the LH front window and close the LH front door.
