Wiper Blades - Pair - Remove And Replace: Remove

  1. Open the hood.
  2. Use the touchscreen to place the wipers into "Wiper Service Mode".
  3. Lift the wiper blade away from the windshield, press and hold the tab on the RH wiper blade, and then slide the wiper blade away from the wiper arm to remove it. Repeat this step for the LH wiper blade.
    CAUTION: Place a shop towel under the wiper arm to prevent damage to the windshield.

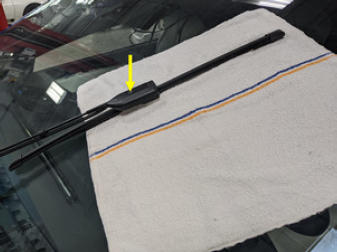

    G15438424Courtesy of TESLA, INC.

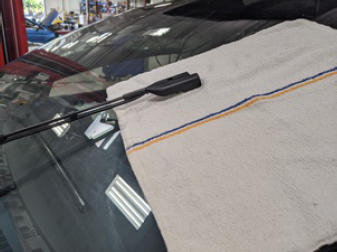

    G15438425Courtesy of TESLA, INC.
