Headlight - LH - Remove And Replace: Install

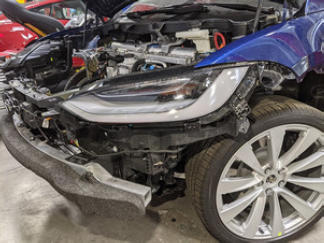

  1. Position the LH headlight onto the vehicle, and then slide headlight into the LH front fender.
    G15438050Courtesy of TESLA, INC.

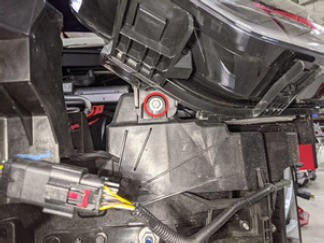

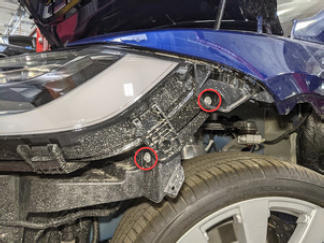

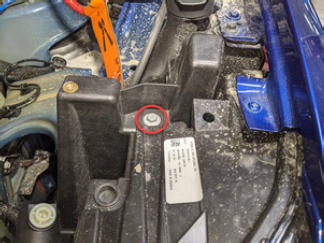

  2. Install the bolts (x4) that attach the LH headlight to the vehicle.

    4.7 N.m (3.5 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15438051Courtesy of TESLA, INC.
    G15438052Courtesy of TESLA, INC.
    G15438053Courtesy of TESLA, INC.

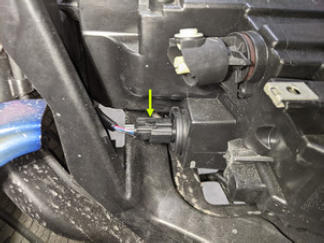

  3. Connect the LH headlight electrical connector.
    G15438054Courtesy of TESLA, INC.
  4. Install the front fascia assembly onto the vehicle. See Fascia Assembly - Front (Remove and Install) .
    NOTE: It is not necessary to install the underhood aprons in preparation for the following step.
  5. Adjust the headlights. See HEADLIGHTS - ADJUST - NA (TOOL METHOD) .
  6. Install the front underhood apron. See Underhood Apron - Front (Remove and Replace) .
  7. Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  8. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
