Hose - Washer - Reservoir - Remove And Replace: Install

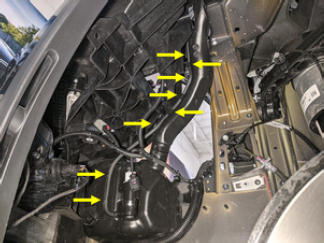

  1. Position the reservoir washer hose onto windshield washer reservoir, and then secure the hose into the hooks (x6) and tabs (x2) that attach the hose to the reservoir.
    G15438339Courtesy of TESLA, INC.

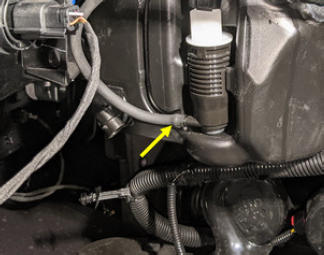

  2. Connect the reservoir washer hose from windshield washer reservoir pump.
    G15438340Courtesy of TESLA, INC.
  3. Install the LH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace) .
  4. Install the LH front wheel. See Wheel (Remove and Install) .

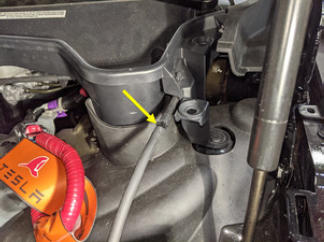

  5. Connect the reservoir washer hose to the straight hose coupling at the cowl screen.
    G15438341Courtesy of TESLA, INC.
  6. Install the underhood storage unit. See Underhood Storage Unit (Remove and Install) .
  7. Install the front underhood apron. See Underhood Apron - Front (Remove and Replace) .
  8. Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  9. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .

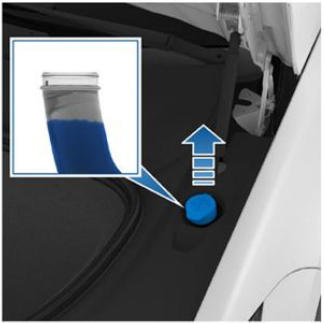

  10. Fill the windshield washer reservoir until the fluid level is visible just below the filler neck.
    G15438342Courtesy of TESLA, INC.
  11. Close the hood.
  12. Remove the vehicle from the lift. See Raise Vehicle - 2 Post Lift .
  13. Raise the LH front window and close the LH front door.
