Seal - Body - Side - Front - Primary - LH - Remove And Replace: Install

  1. Position the LH primary front side body seal into the vehicle, and then press the seal into the body.
    NOTE: Make sure the seal is properly seated onto the interior trim.

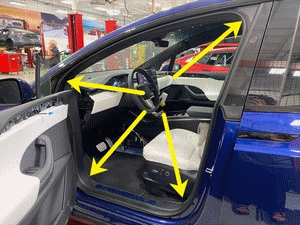

    G00632557Courtesy of TESLA, INC.

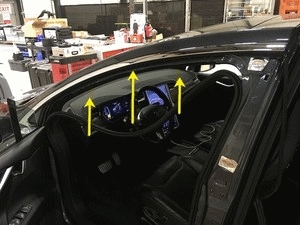

    G00632558Courtesy of TESLA, INC.
  2. Raise the LH front window and close the LH front door.
