Light - Fog/Reverse - Rear - LH - Remove And Replace: Remove
- Remove the liftgate applique. See Applique - Liftgate (Remove and Replace) .
- Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .

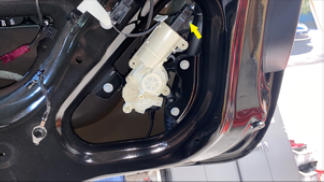

- Disconnect the liftgate cinching actuator electrical connector.

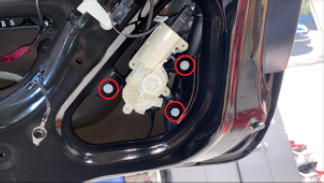

- Remove the bolts (x3) that attach the liftgate cinching actuator assembly to the liftgate, and then remove the assembly from the liftgate.
3 N.m (2.2 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Remove the LH liftgate tail light side cover. See COVER - SIDE - TAIL LIGHT - LIFTGATE - LH (REMOVE AND REPLACE) .

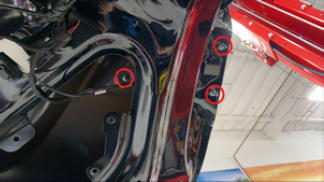

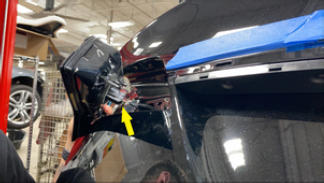

- Remove the nuts (x3) that attach the LH rear fog/reverse light to the liftgate, disconnect the electrical connector. and then remove the light from the liftgate.
Tip: Use of the following tool(s) is recommended:
- 8 mm socket
