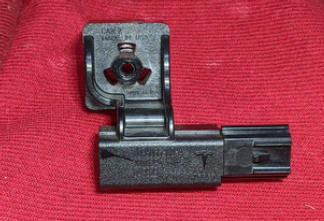

Sensor - Position - Seat Track - 1st Row Seat - LH - Remove And Replace: Remove
- Open the LH front door and lower the LH front window.
- Move the LH front seat rearward.
- Raise the LH front seat to the highest position.

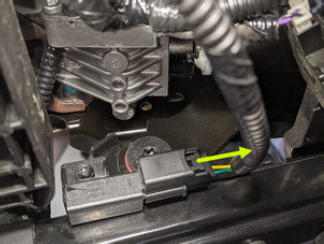

- Disconnect the LH 1st row seat - seat track position sensor electrical connector.NOTE: The sensor is located on the LH front seat inner track.

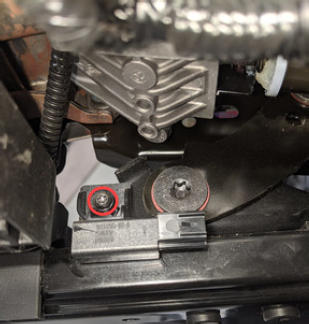

- Remove the screw that attaches the LH 1st row seat - seat track position sensor to the seat track, and then remove the sensor from the seat track.
2 N.m (1.5 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T20 socket
