Riser - Outer - Driver Seat - Remove And Replace: Install

  1. Position the driver seat outer riser outboard cover onto the riser, and then secure the clips (x9) that attach the cover to the riser. Repeat this step for the inboard cover.
    NOTE: Install the outboard cover first, and then the inboard cover.
    G15401670Courtesy of TESLA, INC.

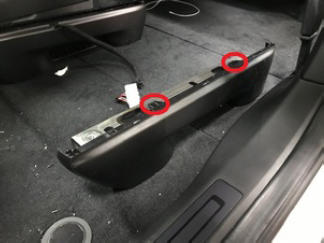

    G15401671Courtesy of TESLA, INC.

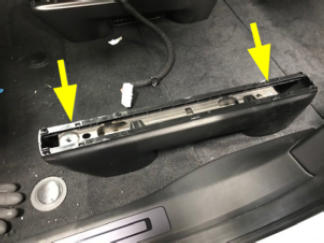

    G15401672Courtesy of TESLA, INC.
  2. Position the driver seat outer riser assembly into the vehicle, and then install new bolts (x2) that attach the assembly to the vehicle.

    33 N.m (24.3 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket

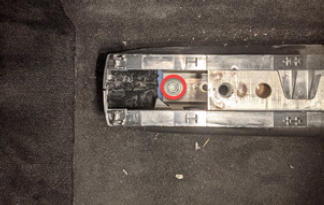

    G15401673Courtesy of TESLA, INC.

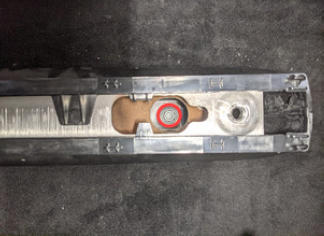

    G15401674Courtesy of TESLA, INC.

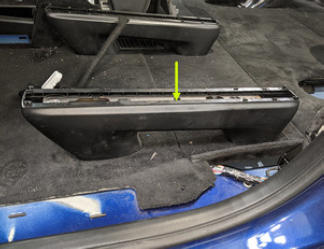

    G15401675Courtesy of TESLA, INC.
  3. Install the driver seat. See SEAT ASSEMBLY - 1ST ROW - LH (REMOVE AND INSTALL) .
  4. Raise the front windows and close the LH front door.
