Trim - A-Pillar - Sun Visor Bezel - LH - Remove And Replace: Remove
- Open the LH front door and lower the LH front window.
- Move the driver seat rearward.

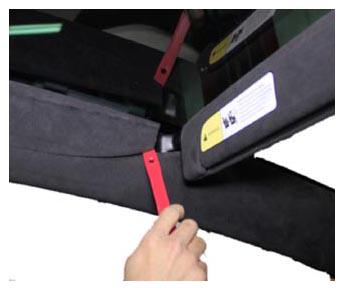

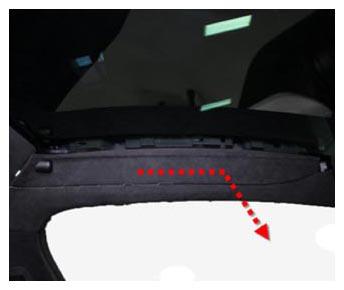

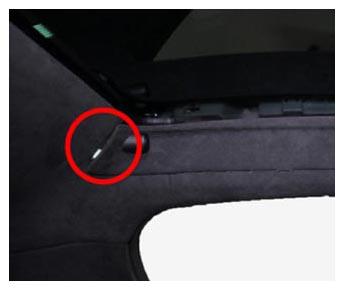

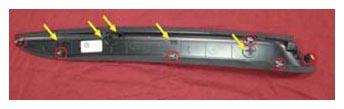

- Release the clips (x6) and tabs (x5) that attach the LH sun visor bezel A-pillar trim to the vehicle, and then slide the trim forward to release it from the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
