Trim - A-Pillar - Sun Visor Bezel - LH - Remove And Replace: Install

  1. Position the LH sun visor bezel A-pillar trim into the vehicle, and then secure the tabs (x5) and clips (x6) that attach the trim to the vehicle.
    NOTE: Insert the tabs, slide the bezel rearward, and then secure the clips.

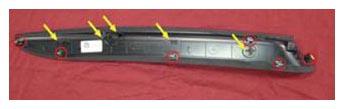

    G15396034Courtesy of TESLA, INC.

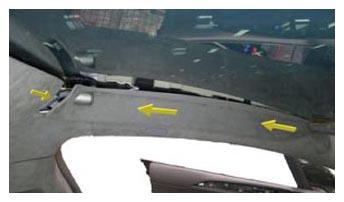

    G15396035Courtesy of TESLA, INC.
  2. Move the driver seat to the original position.
  3. Raise the LH front window and close the LH front door.
