Grille - Speaker - Rear - LH - Remove And Replace: Remove

  1. Open the LH falcon wing door.

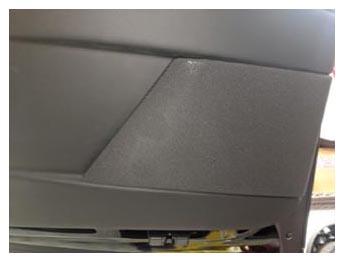

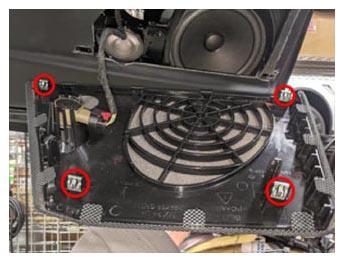

  2. Release the clips (x4) that attach the LH rear speaker grille to the LH rear door.
    G15395546Courtesy of TESLA, INC.
    G15395547Courtesy of TESLA, INC.

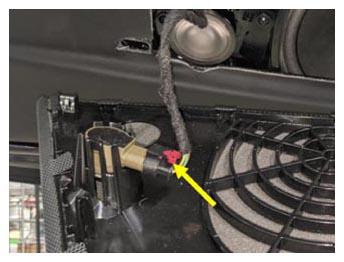

  3. Release the connector lock, disconnect the interior ultrasonic sensor electrical connector from the rear door harness, and then remove LH rear speaker grille assembly from the door.
    NOTE: Do not push down on red tab. Pull the red tab to disengage the lock, and then pull again to release the connector.
    G15395548Courtesy of TESLA, INC.

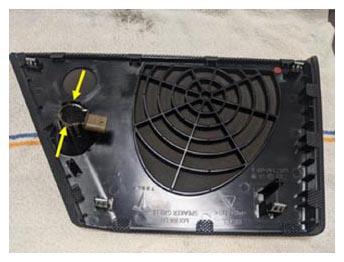

  4. Release the tabs (x2) that attach the interior ultrasonic sensor to the LH rear speaker grille, and then remove the sensor from the assembly.
    G15395549Courtesy of TESLA, INC.
