Grille - Speaker - Rear - LH - Remove And Replace: Install

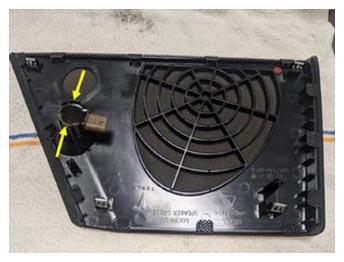

- Install the interior ultrasonic sensor into the LH rear speaker grille assembly.
 Courtesy of TESLA, INC.
|

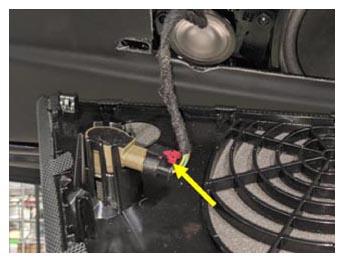

- Position the LH rear speaker grille assembly onto the LH rear door, connect the interior ultrasonic sensor to rear door harness, and then engage the connector lock.
 Courtesy of TESLA, INC.
|

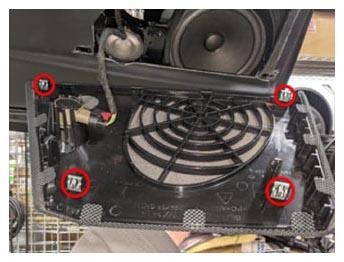

- Secure the clips (x4) that attach the LH rear speaker grille to the LH rear door panel.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

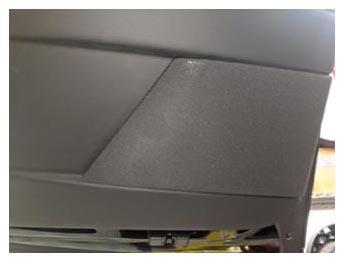

- Close the LH falcon wing door.
