- Install trailer hitch ECU
NOTE:
1x bolt, 10mm, 6 Nm
 Courtesy of TESLA INC.
|

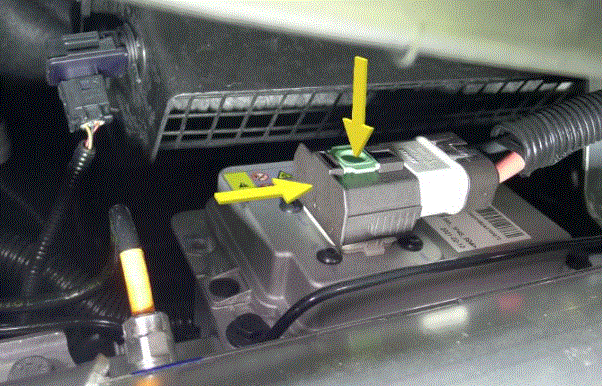

- Connect trailer hitch ECU
NOTE:
2x connectors
 Courtesy of TESLA INC.
|
- Install rear fascia onto vehicle
NOTE:
2x connectors, 24x tabs, Secure BLE connectors first then secure fascia onto vehicle, Recommended assistance
 Courtesy of TESLA INC.
|
 Courtesy of TESLA INC.
|
 Courtesy of TESLA INC.
|
 Courtesy of TESLA INC.
|

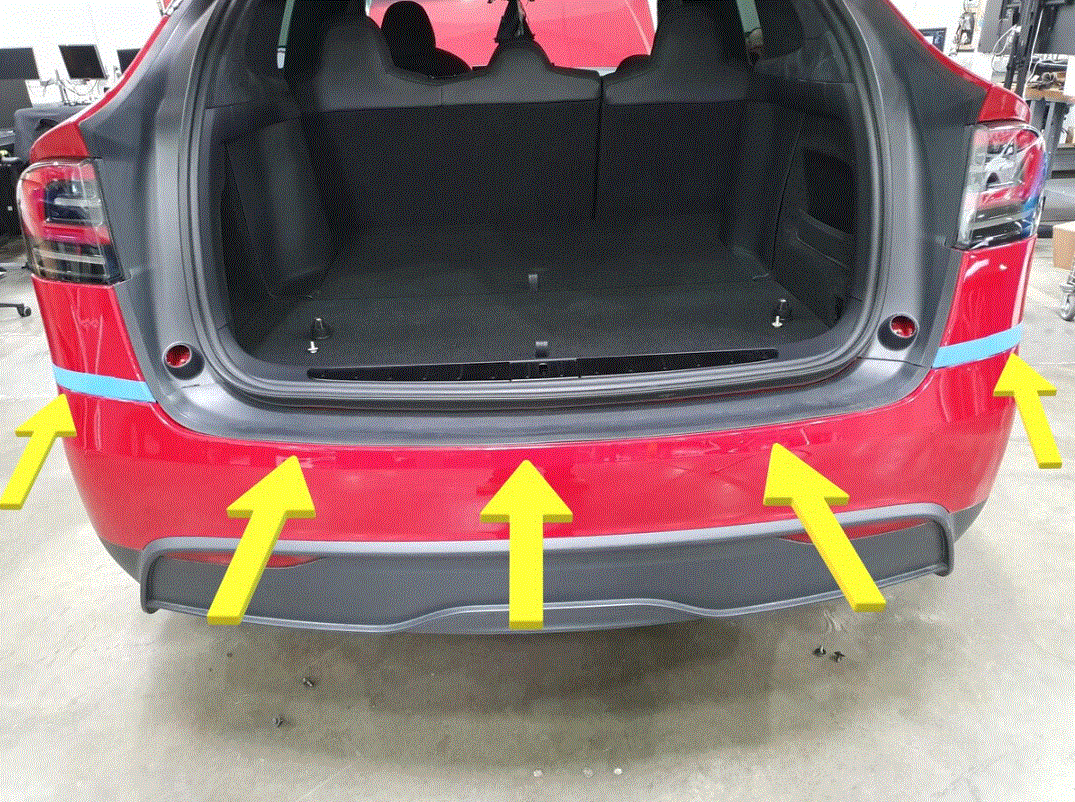

- Remove masking tape from LH rear quarter panel
 Courtesy of TESLA INC.
|
 Courtesy of TESLA INC.
|
- Remove masking tape from RH rear quarter panel
 Courtesy of TESLA INC.
|
 Courtesy of TESLA INC.
|
- Install rear lower diffuser bolts to body
NOTE:
4x bolts, 10mm, 3 Nm
 Courtesy of TESLA INC.
|

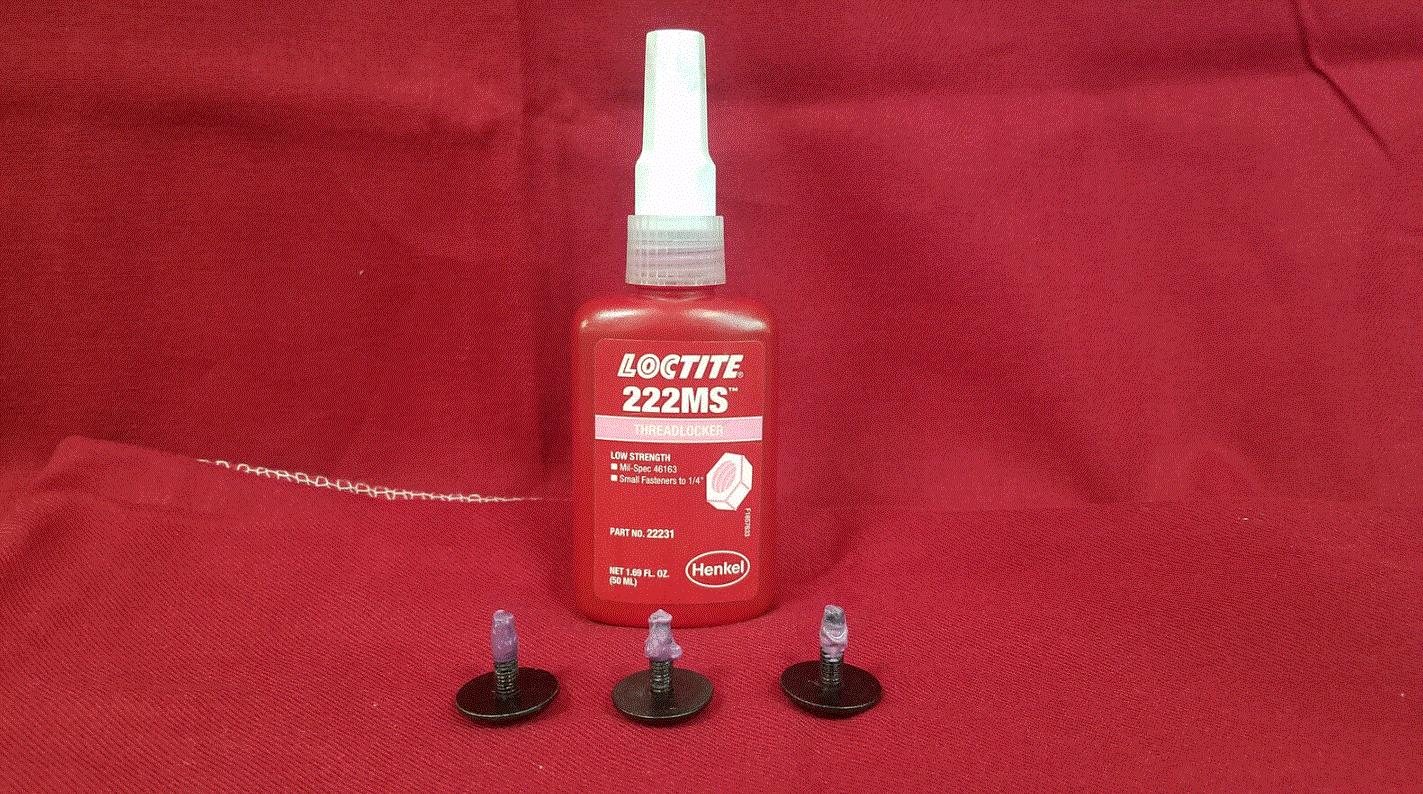

- Apply Loctite 222 to fasteners and secure rear lower valence onto rear fascia
NOTE:
6x bolts, 10mm, 6 Nm, 2x clips
 Courtesy of TESLA INC.
|
 Courtesy of TESLA INC.
|
- Install screw securing RH rear fascia to quarter panel
NOTE:
1x screw, T25, 1.5 Nm
 Courtesy of TESLA INC.
|
- Install RH rear fender garnish onto rear fascia
NOTE:
3x clips, 7 tabs
 Courtesy of TESLA INC.
|
 Courtesy of TESLA INC.
|

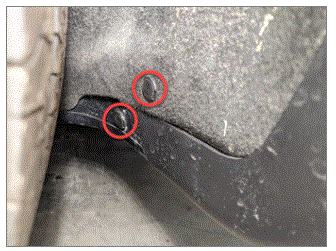

- Install clip securing RH rear fender garnish and arch liner
NOTE:
2x push clips, 2x bolts, 10mm, 5 Nm
 Courtesy of TESLA INC.
|
 Courtesy of TESLA INC.
|
- Install screw securing LH rear fascia to quarter panel
NOTE:
1x screw, T25, 1.5 Nm
Courtesy of TESLA INC.
|
- Install LH rear fender garnish onto rear fascia
NOTE:
3x clips, 7 tabs
Courtesy of TESLA INC.
|
Courtesy of TESLA INC.
|

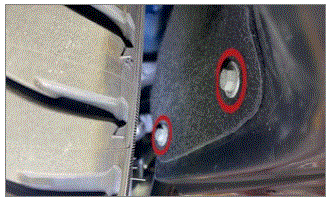

- Install clip securing LH rear fender garnish and arch liner
NOTE:
4x push clips, 2x bolts, 10mm, 5 Nm
 Courtesy of TESLA INC.
|
 Courtesy of TESLA INC.
|
- Install bolt securing LH top of fascia to bracket
NOTE:
1x bolts, 10mm, 4 Nm
 Courtesy of TESLA INC.
|
- Install bolt securing RH top of fascia to bracket
NOTE:
1x bolts, 10mm, 4 Nm
 Courtesy of TESLA INC.
|

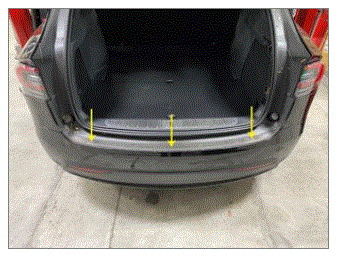

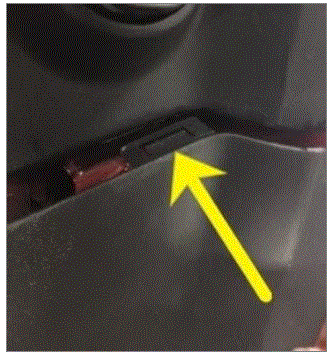

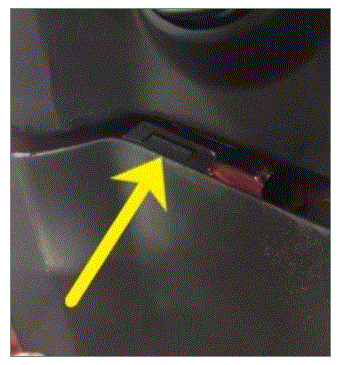

- Install LH and RH sides of rear fascia trough
NOTE:
Verify trim is flush to rear fascia and body
 Courtesy of TESLA INC.
|
 Courtesy of TESLA INC.
|
 Courtesy of TESLA INC.
|

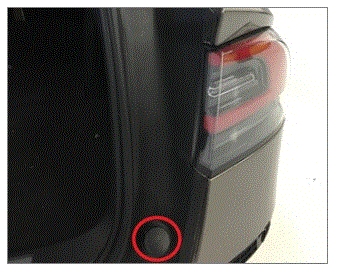

- Install RH liftgate stop from vehicle
NOTE:
1x bump stop
 Courtesy of TESLA INC.
|

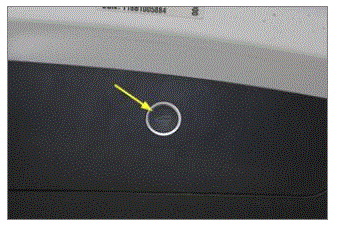

- Install LH liftgate stop onto vehicle
NOTE:
1x bump stop
 Courtesy of TESLA INC.
|
 Courtesy of TESLA INC.
|
- Connect the First Responder Loop and LV battery connector.
 Courtesy of TESLA INC.
|
 Courtesy of TESLA INC.
|
- Close liftgate
 Courtesy of TESLA INC.
|
- Install the rear underhood apron.
 Courtesy of TESLA INC.
|
 Courtesy of TESLA INC.
|
- Close the hood.

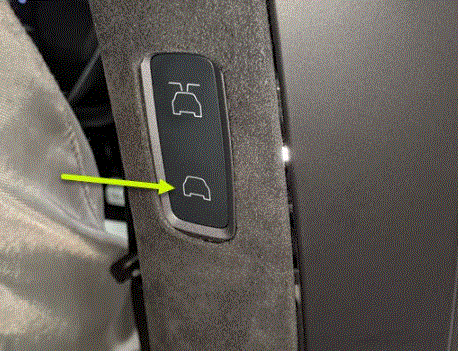

- Calibrate the RH falcon wing door.
 Courtesy of TESLA INC.
|

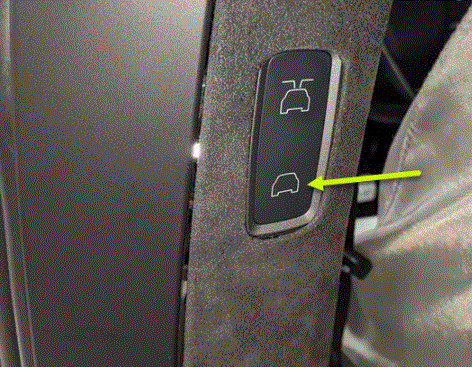

- Calibrate the LH falcon wing door.
 Courtesy of TESLA INC.
|
- Press brake pedal to turn on drive rails

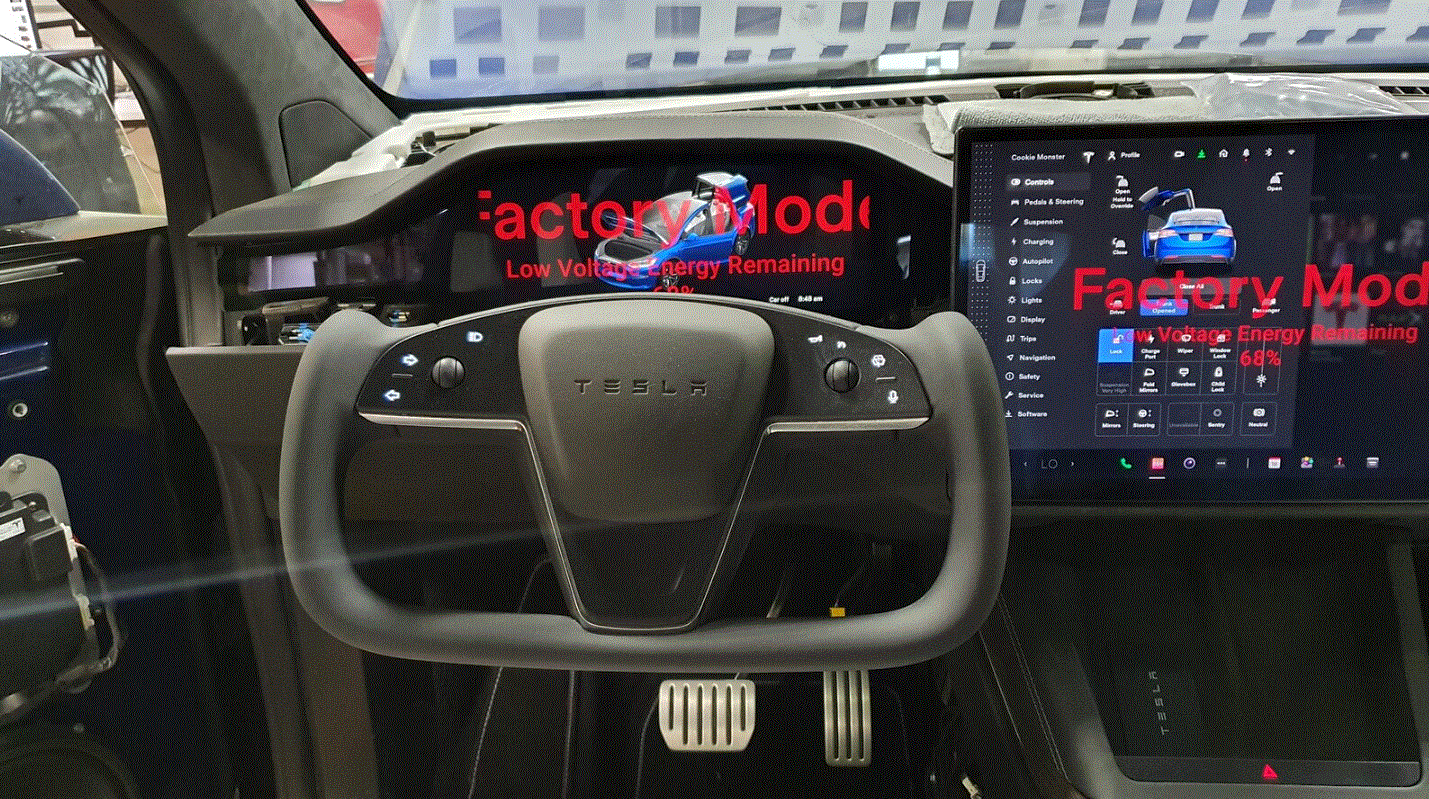

- Turn steering wheel back to center
 Courtesy of TESLA INC.
|
- Set air suspension ride height to "Standard"
NOTE:
Using center display > Suspension > "Standard"
 Courtesy of TESLA INC.
|
- Raise both front windows.
- Close the LH front door.
