Molding - Rocker Panel - LH - Remove And Replace: Remove
- Release the clips (x3) that attach the rear portion of the LH front fender garnish to the LH rocker panel molding.
 Courtesy of TESLA, INC.
|

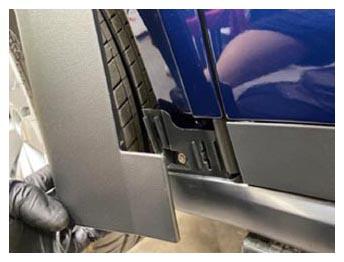

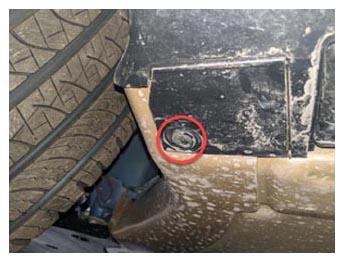

- Remove the screw that attaches the front end of the LH rocker panel molding to the body.
 Courtesy of TESLA, INC.
|

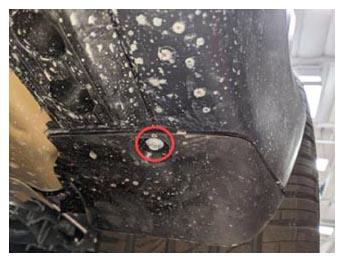

- Release the clip that attaches the front end of the LH rocker panel molding to the skid plate.
 Courtesy of TESLA, INC.
|

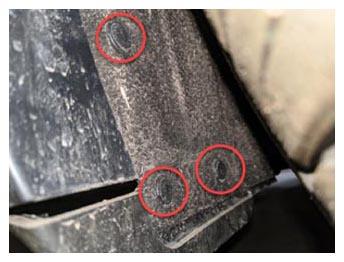

- Remove clips (x3) that attach the rear end of the LH rocker panel molding to the LH rear wheel arch liner, and move the liner aside for access.
 Courtesy of TESLA, INC.
|

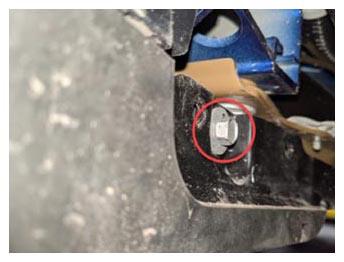

- Remove the bolt that attaches the bottom of the LH rear wheel fairing to the body.
 Courtesy of TESLA, INC.
|

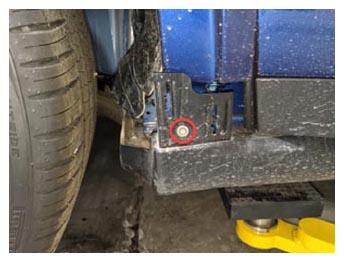

- Remove the bolt that attaches the rear of the LH rear wheel fairing to the body, and then remove the fairing from the vehicle.
 Courtesy of TESLA, INC.
|

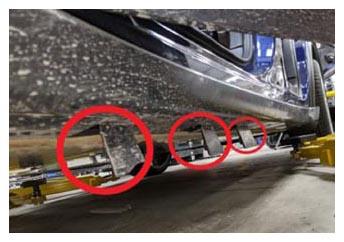

- Open the bolt covers (x4) along the bottom edge of the LH rocker panel molding.
 Courtesy of TESLA, INC.
|

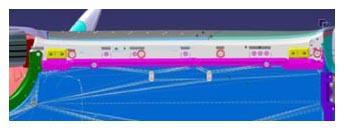

- Remove the bolts (x4) that attach the LH rocker panel molding to the body.
 Courtesy of TESLA, INC.
|

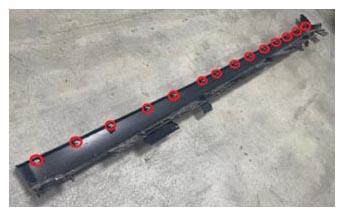

- Release the clips (x14) that attach the LH rocker panel molding to the body, and then remove the molding from the vehicle.
 Courtesy of TESLA, INC.
|
