Molding - Rocker Panel - LH - Remove And Replace: Install

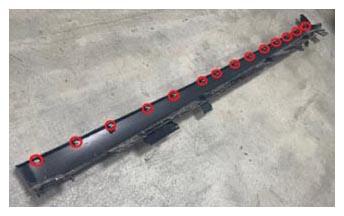

- Install the LH rocker panel molding to the body, and then fasten the clips (x14) that attach the molding to the vehicle.
 Courtesy of TESLA, INC.
|
- Install the bolts (x4) that attach the LH rocker panel molding to the body.
3 N.m (2.2 ft-lbs)
 Courtesy of TESLA, INC.
|
- Close the bolt covers (x4) along the bottom edge of the LH rocker panel molding.
 Courtesy of TESLA, INC.
|
- Install the LH rear wheel fairing to the body, and then install the bolt that attaches the rear of the fairing to the body.
3 N.m (2.2 ft-lbs)
 Courtesy of TESLA, INC.
|
- Install the bolt that attaches the bottom of the LH rear wheel fairing to the body.
3 N.m (2.2 ft-lbs)
 Courtesy of TESLA, INC.
|
- Fasten clips (x3) that attach the rear end of the LH rocker panel molding to the LH rear wheel arch liner.
 Courtesy of TESLA, INC.
|
- Fasten the clip that attaches the front end of the LH rocker panel molding to the skid plate.
 Courtesy of TESLA, INC.
|
- Install the screw that attaches the front end of the LH rocker panel molding to the body.
3 N.m (2.2 ft-lbs)
 Courtesy of TESLA, INC.
|
- Fasten the clips (x3) that attach the rear portion of the LH front fender garnish to the LH rocker panel molding.
 Courtesy of TESLA, INC.
|
