Applique - (Roof - Front) - Remove And Replace: Remove
- Open the LH falcon wing door.

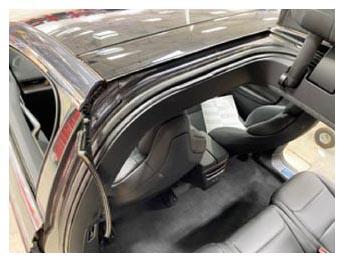

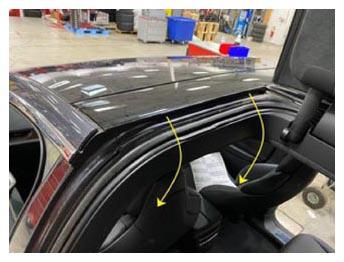

- Release the clips (x3) that attach the top of the LH B-pillar applique seal to the vehicle. Repeat this step for the RH B-pillar applique seal.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

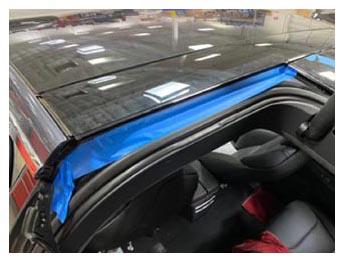

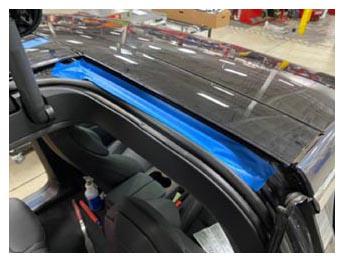

- Apply masking tape to the body to prevent damage.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

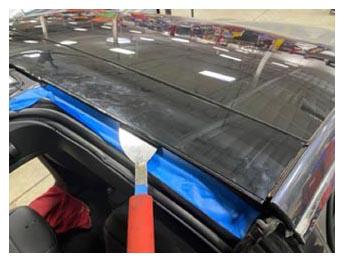

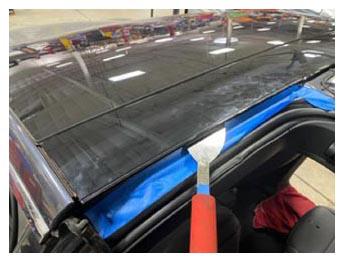

- Use a hydro blade to separate the urethane that attaches the front roof applique to the vehicle, release the clips (x5), and then remove applique from the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
