Back Panel - Headrest - 3rd Row - LH - Remove And Replace: Install

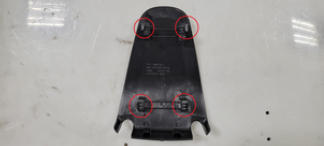

  1. Position the LH 3rd row headrest back panel onto the headrest, and then secure the clips (x4) that attach the back panel to the headrest.
    G15405268Courtesy of TESLA, INC.
    G15405269Courtesy of TESLA, INC.

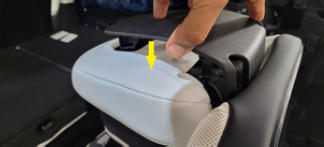

  2. Fold the headrest to the original position.
  3. Close the liftgate.
