Trim - Crush Can - Rear Trunk - LH - Remove And Replace: Remove

  1. Remove the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE) .
  2. Remove the side trunk load floor. See TRUNK LOAD FLOOR - SIDE (REMOVE AND REPLACE) .
  3. Remove the trunk tub floor insulator.
    G15399383Courtesy of TESLA, INC.
  4. Remove the trunk carpet.

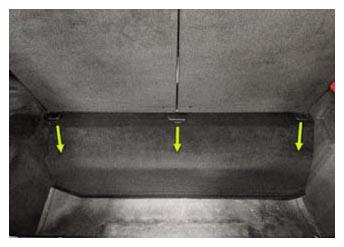

    G15399384Courtesy of TESLA, INC.
  5. Remove the LH and RH side rear trunk garnishes. See GARNISH - REAR TRUNK - SIDE - LH (REMOVE AND REPLACE) .
  6. Remove the trunk sill trim. See TRIM - SILL - TRUNK (REMOVE AND REPLACE) .
  7. Remove the clips (x6) that attach the rear wall load support to the vehicle.

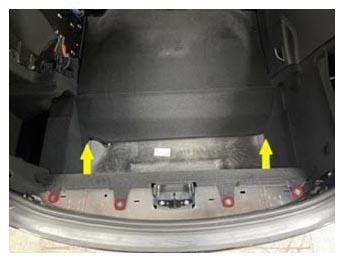

    G15399392Courtesy of TESLA, INC.

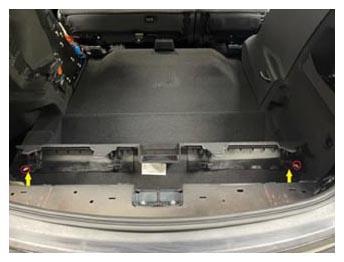

    G15399393Courtesy of TESLA, INC.

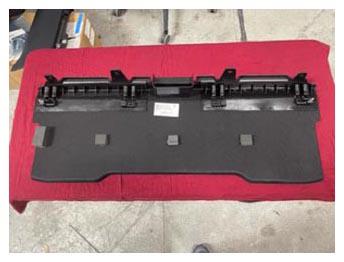

    G15399394Courtesy of TESLA, INC.
  8. Remove the clips (x3) that attach the LH crush can bracket to the vehicle.

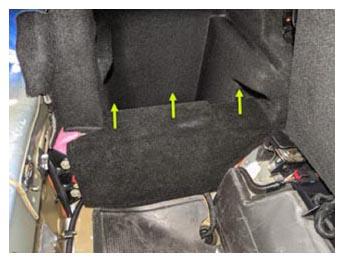

    G15399395Courtesy of TESLA, INC.

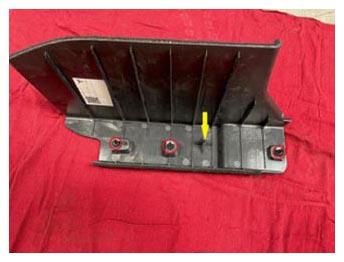

    G15399396Courtesy of TESLA, INC.
