Trim - Crush Can - Rear Trunk - LH - Remove And Replace: Install

  1. Install the clips (x3) that attach the LH crush can bracket to the vehicle.

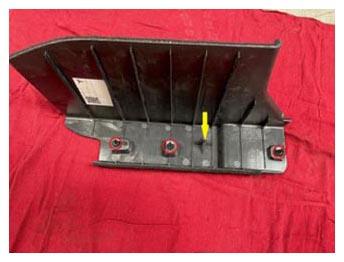

    G15399397Courtesy of TESLA, INC.

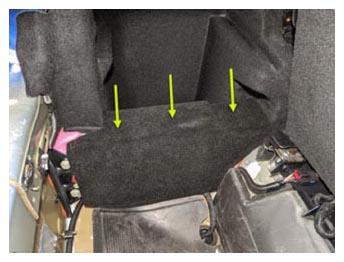

    G15399398Courtesy of TESLA, INC.
  2. Install the clips (x6) that attach the rear wall load floor support to the vehicle.
    G15399394Courtesy of TESLA, INC.

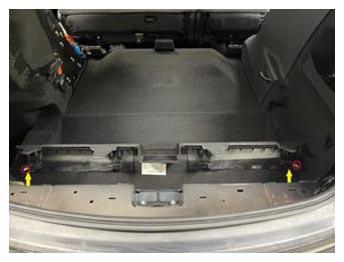

    G15399399Courtesy of TESLA, INC.

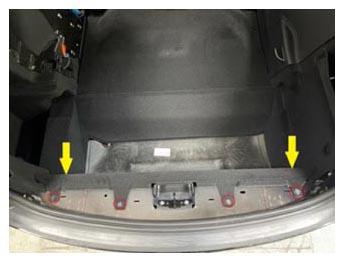

    G15399400Courtesy of TESLA, INC.
  3. Install the trunk sill trim. See TRIM - SILL - TRUNK (REMOVE AND REPLACE) .
  4. Install the LH and RH side rear trunk garnishes. See GARNISH - REAR TRUNK - SIDE - LH (REMOVE AND REPLACE) .
  5. Install the trunk carpet.

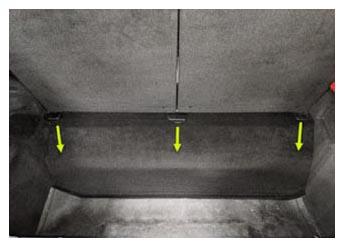

    G15399408Courtesy of TESLA, INC.
  6. Install the trunk tub floor insulator.
    G15399409Courtesy of TESLA, INC.
  7. Install the side trunk load floor. See TRUNK LOAD FLOOR - SIDE (REMOVE AND REPLACE) .
  8. Install the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE) .
