Plate - Sliding - Seat - 2nd Row - LH - Remove And Replace: Install

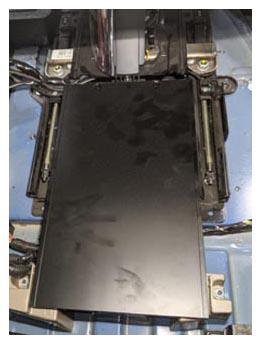

  1. Position the 2nd row seat sliding plate.

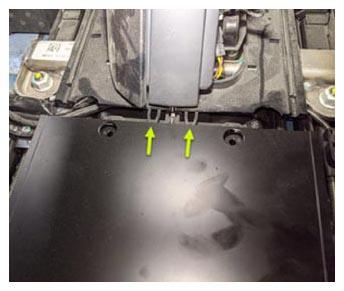

    NOTE: Gently slide the plate into the tabs (x2) to engage.
    G15399360Courtesy of TESLA, INC.
    G15399361Courtesy of TESLA, INC.

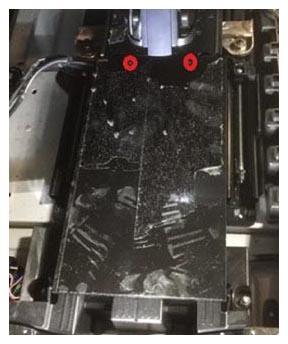

  2. Install the screws (x2) that attach the 2nd row seat sliding plate to the lower seat bracket.

    2.5 N.m (1.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket
    G15399362Courtesy of TESLA, INC.

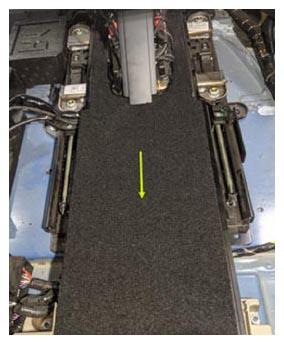

  3. Install the new 2nd row seat sliding plate carpet.
    NOTE: Carpet is one time use only. Install new carpet anytime it is removed from the panel.
    G15399363Courtesy of TESLA, INC.
  4. Install the LH 2nd row seat post inner and outer trim panels. See Trim - Outer - Seat Post - 2nd Row - LH (Remove and Replace) and Trim - Inner - Seat Post - 2nd Row - LH (Remove and Replace) .
  5. Install the 2nd row mid floor panel. See FLOOR PANEL - MID - 2ND ROW (6 SEAT) (REMOVE AND REPLACE) .
  6. Install the 2nd row floor mat. See FLOOR MAT - 2ND ROW (REMOVE AND REPLACE) .
  7. Install the LH and RH rear sill panel trims. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  8. Restore the driver seat back to its original position.
  9. Reconnect a laptop with Toolbox to the vehicle. See Toolbox 3 (Connect and Disconnect) .

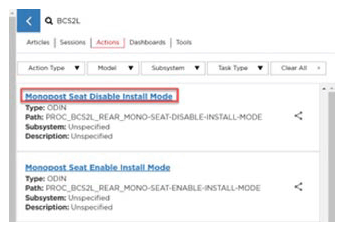

  10. In Toolbox, click PROC_REAR_MONO-SEAT-DISABLE-INSTALL-MODE  , and then click Run  . Allow the routine to complete.
    G15399364Courtesy of TESLA, INC.
    G15399365Courtesy of TESLA, INC.
  11. Disconnect the laptop from the vehicle. See Toolbox 3 (Connect and Disconnect) .
