Panel - Footrest - Front Passenger (LHD) - Remove and Install: Install

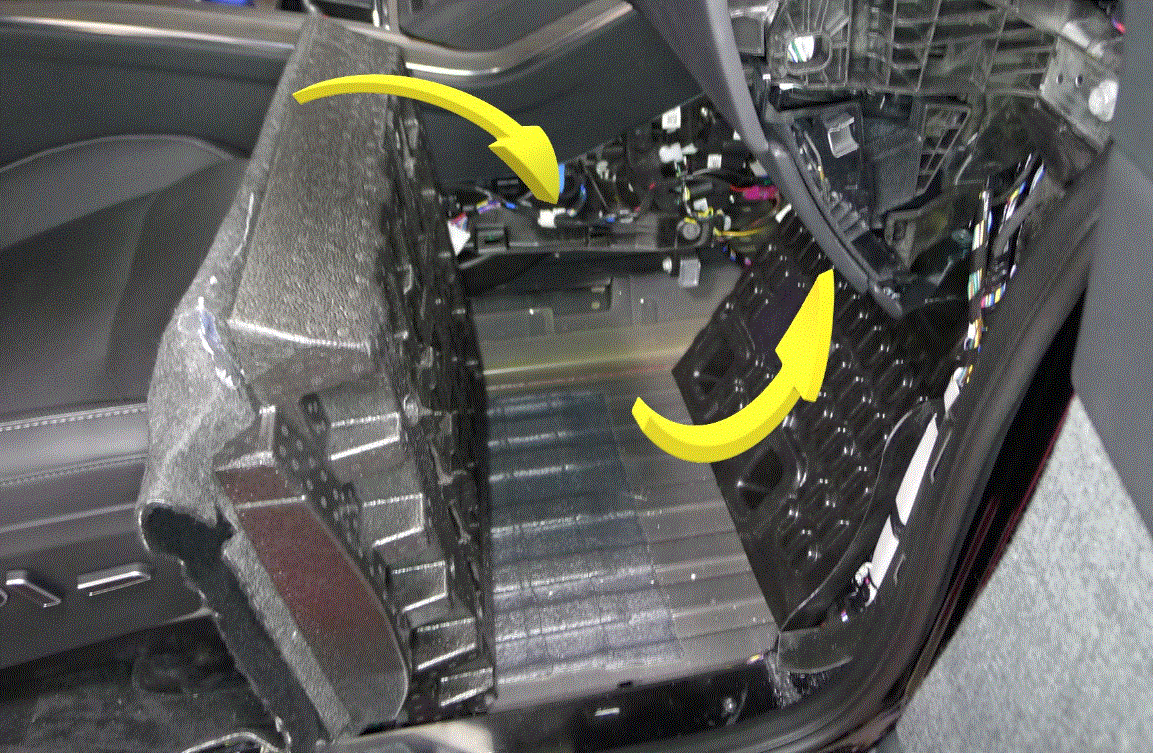

- Install the RH front passenger footrest panel, and then fold the RH primary carpet and support back into place. →
- Install the bolts (x2) and nuts (x2) that attach the panel to the body.
5 N.m (3.7 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Fasten the clip that attaches the electrical harness to the front passenger footrest panel.
- Fold the RH main carpet back into place.
- Install the RH middle A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH - REMOVE AND REPLACE
- Install the RH lower A-pillar trim. See TRIM - A-PILLAR - LOWER - LH - REMOVE AND REPLACE
- Install the RH primary front side body seal.
- Install the RH center console side panel carpet.
- Install the passenger footwell cover. See COVER - FOOTWELL - PASSENGER - REMOVE AND REPLACE
- Install the RH front floor mat.
- Restore the front passenger seat back to its original position.
- Raise the RH front window and close the RH front door.
