Harpoon Bracket - Gap Hider - Trunk - LH (5 Seat) - Remove And Replace: Install

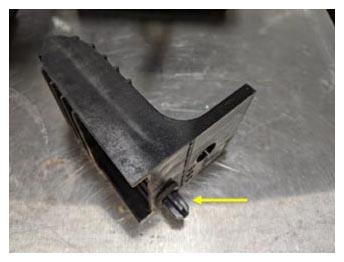

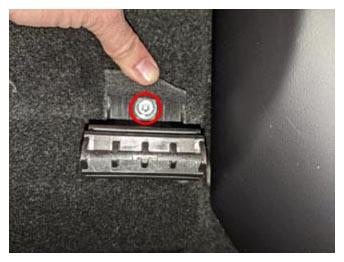

- Install the bolt that attaches the LH harpoon bracket to the vehicle.
37 N.m (27.3 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 11 mm deep socket
- Install the trunk gap hider. See GAP HIDER - TRUNK (5 SEAT) (REMOVE AND REPLACE) .
- Install the front trunk load floor. See TRUNK LOAD FLOOR - FRONT (REMOVE AND REPLACE) .
- Install the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE) .
- Fold the 2nd row seats into vertical (upright) position.
- Move the driver and front passenger seats back to their original position.
