Harpoon Bracket - Gap Hider - Trunk - Center (5 Seat) - Remove And Replace: Remove
- Open the LH and RH front doors.
- Lower the LH front window.
- Move the driver and front passenger seats fully forward.
- Open the LH and RH rear doors.
- Fold down the LH and RH 2nd row seats.
- Open the liftgate.
- Remove the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE) .
- Remove the front trunk load floor. See TRUNK LOAD FLOOR - FRONT (REMOVE AND REPLACE) .
- Remove the trunk gap hider. See GAP HIDER - TRUNK (5 SEAT) (REMOVE AND REPLACE) .

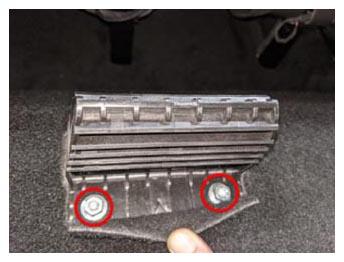

- Remove the bolts (x2) that attach the harpoon bracket to the vehicle.
37 N.m (27.3 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 11 mm deep socket
