Home >> Tesla >> 2021 >> Model X Long Range Plus >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Interior/Exterior Trim >> Interior Trim (Model X) (2 Of 2) >> Carpeting And Mats >> Gap Hider - Trunk (5 Seat) - Remove And Replace >> Install

Gap Hider - Trunk (5 Seat) - Remove And Replace: Install

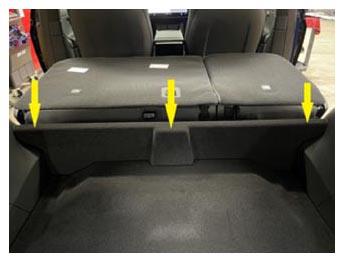

  1. Install the trunk gap hider.
    G15398241Courtesy of TESLA, INC.
  2. Install the front trunk load floor. See TRUNK LOAD FLOOR - FRONT (REMOVE AND REPLACE) .
  3. Install the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE) .
  4. Fold the 2nd row seats into vertical (upright) position.
  5. Move the driver and front passenger seats back to their original position.
