Carpet - Surround - Seat - 2nd Row - LH - Remove And Replace: Install

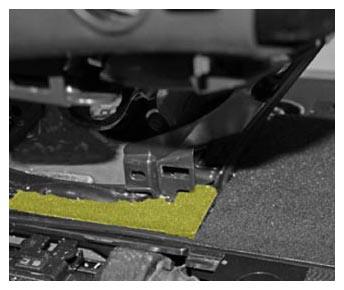

- Install a new LH 2nd row seat surround carpet on the vehicle.
 Courtesy of TESLA, INC.
|
- Move the LH monopost seat to original position.
- Install the LH 2nd row seat post outer trim. See Trim - Outer - Seat Post - 2nd Row - LH (Remove and Replace)
.

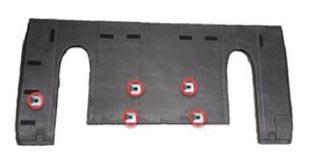

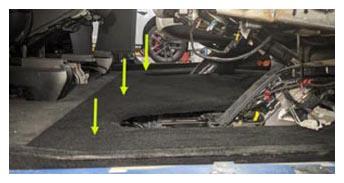

- With assistance, position the 2nd row mid floor board on the vehicle, and then install the clips (x5) that attach the floor board to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the 2nd row floor mat. See FLOOR MAT - 2ND ROW (REMOVE AND REPLACE) .
- Position the RH rear sill panel trim on the vehicle, and then install the clips (x8) that attach the trim to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE)
.
- Close the LH and RH falcon wing doors.
- Move the LH and RH front seats to original position.
- Raise the LH and RH front windows.
- Close the LH and RH front doors.
