Carpet - Sliding - Seat - 2nd Row - LH - Remove And Replace: Install

  1. Install a new LH 2nd row seat sliding carpet on the sliding plate.
  2. Install the LH 2nd row seat sliding plate. See PLATE - SLIDING - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  3. Install the LH 2nd row seat post inner trim. See Trim - Inner - Seat Post - 2nd Row - LH (Remove and Replace) .
  4. Install the LH 2nd row seat post outer trim. See Trim - Outer - Seat Post - 2nd Row - LH (Remove and Replace) .
  5. Install the 2nd row mid floor panel. See FLOOR PANEL - MID - 2ND ROW (6 SEAT) (REMOVE AND REPLACE) .
  6. Install the 2nd row floor mat. See FLOOR MAT - 2ND ROW (REMOVE AND REPLACE) .
  7. Install the LH and RH rear sill panel trims. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  8. Close the LH and RH falcon wings doors.
  9. Move the LH and RH front seats to original position.
  10. Reconnect toolbox 3 to the vehicle. See Toolbox 3 (Connect and Disconnect) .

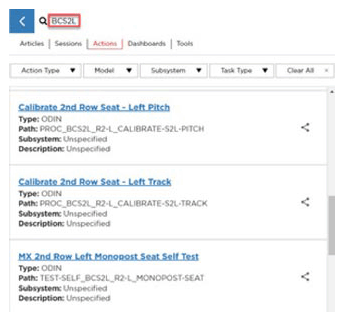

  11. In Toolbox 3, click the Actions/Autodiag  tab, and type "BCS2L" into the search field.
    G15397583Courtesy of TESLA, INC.

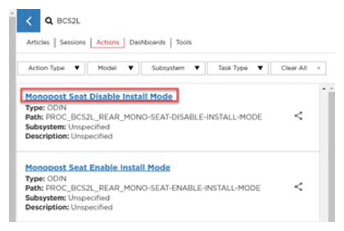

  12. Select PROC_REAR_MONO-SEAT-DISABLE-INSTALL-MODE  , click Run  , and allow the routine to complete.
    NOTE: Verify the routine is specific to "BCS2L", and then select 'X' at the upper right of the window to close after completion.
    G15397584Courtesy of TESLA, INC.
    G15397585Courtesy of TESLA, INC.
  13. Disconnect toolbox 3 from the vehicle. See Toolbox 3 (Connect and Disconnect) .
  14. Raise the LH and RH front windows.
  15. Close the LH and RH front doors.
