Carpet - 3rd Row - Remove And Replace: Remove

  1. Open all four doors.
  2. Lower the LH and RH front windows.
  3. Move the LH front seat forward.
  4. On the touchscreen, touch Controls > Frunk Open  .
  5. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  6. Open the liftgate.
  7. Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  8. Move the RH front seat forward.
  9. Remove the RH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  10. Remove the 2nd row floor mat. See FLOOR MAT - 2ND ROW (REMOVE AND REPLACE) .
  11. Remove the 2nd row front floor panel. See Floor Panel - Front - 2nd Row (6 Seat) (Remove And Replace) .
  12. Remove the 2nd row mid floor panel. See FLOOR PANEL - MID - 2ND ROW (6 SEAT) (REMOVE AND REPLACE) .
  13. Move the LH and RH Monopost seats forward.
  14. Remove the RH side rear trunk garnish. See GARNISH - REAR TRUNK - SIDE - LH (REMOVE AND REPLACE) .
  15. Remove the RH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
  16. Remove the RH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  17. Remove the LH side rear trunk garnish. See GARNISH - REAR TRUNK - SIDE - LH (REMOVE AND REPLACE) .
  18. Remove the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
  19. Remove the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  20. Remove the 2nd row rear floor panel. See Floor Panel - Rear - 2nd Row (6 Seat) (Remove And Replace) .
  21. Remove the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE) .
  22. Remove the rear trunk floor NVH insulator. See NVH INSULATOR - FLOOR - REAR TRUNK (REMOVE AND REPLACE) .
  23. Remove the rear trunk carpet. See CARPET - REAR TRUNK (7 SEAT) (REMOVE AND REPLACE) .
  24. On the touchscreen, touch Controls > Safety & Security > Power Off  .
  25. Disconnect LV power. See LV Power (Disconnect and Connect) .
  26. Remove the 3rd row seat cushion. See Cushion - Seat - 3rd Row (Remove and Replace) .
  27. Remove the 3rd seat assembly. See Seat Assembly - 3rd Row (Remove and Replace) .

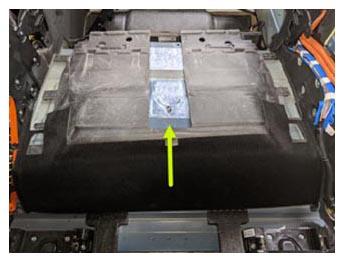

  28. Remove the 3rd row carpet from the vehicle.
    G15397466Courtesy of TESLA, INC.
