Carpet - 3rd Row - Remove And Replace: Install

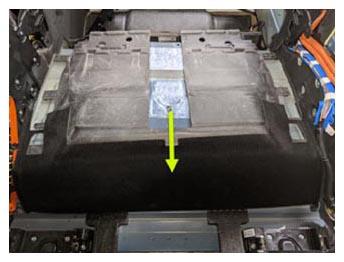

  1. Install the 3rd row carpet on the vehicle.
    G15397467Courtesy of TESLA, INC.
  2. Install the 3rd seat assembly. See Seat Assembly - 3rd Row (Remove and Replace) .
  3. Install the 3rd row seat cushion. See Cushion - Seat - 3rd Row (Remove and Replace) .
  4. Install the rear trunk carpet. See CARPET - REAR TRUNK (7 SEAT) (REMOVE AND REPLACE) .
  5. Install the rear trunk floor NVH insulator. See NVH INSULATOR - FLOOR - REAR TRUNK (REMOVE AND REPLACE) .
  6. Install the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE) .
  7. Connect LV power. See LV Power (Disconnect and Connect) .
  8. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  9. Install the 2nd row rear floor panel. See Floor Panel - Rear - 2nd Row (6 Seat) (Remove And Replace) .
  10. Install the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  11. Install the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
  12. Install the LH side rear trunk garnish. See GARNISH - REAR TRUNK - SIDE - LH (REMOVE AND REPLACE) .
  13. Install the RH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  14. Install the RH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
  15. Install the RH side rear trunk garnish. See GARNISH - REAR TRUNK - SIDE - LH (REMOVE AND REPLACE) .
  16. Close the liftgate.
  17. Move the LH and RH Monopost seats to original position.
  18. Install the 2nd row mid floor panel. See FLOOR PANEL - MID - 2ND ROW (6 SEAT) (REMOVE AND REPLACE) .
  19. Install the 2nd row front floor panel. See Floor Panel - Front - 2nd Row (6 Seat) (Remove And Replace) .
  20. Install the 2nd row floor mat. See FLOOR MAT - 2ND ROW (REMOVE AND REPLACE) .
  21. Install the RH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  22. Move the RH front seat to original position.
  23. Close the RH front door.
  24. Install the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  25. Move the LH front seat to original position.
  26. Calibrate the rear doors.
    NOTE: If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate  to calibrate the rear doors.
  27. Raise the LH and RH front windows.
  28. Close the LH front door.
