Carpet - 1st Row - Remove And Replace: Remove

  1. Remove the LH and RH front sill trims. See TRIM - SILL PANEL - FRONT - LH (REMOVE AND REPLACE) .
  2. Remove the 1st row podium. See Podium - 1st Row (Remove and Replace) .
  3. Remove the push clips (x2) that attach the 1st row carpet to the vehicle, and then remove the carpet from the vehicle.
    NOTE: Position the LH and RH sides of carpet away from the front sill trims.

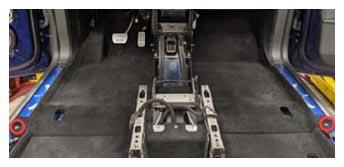

    G15397413Courtesy of TESLA, INC.

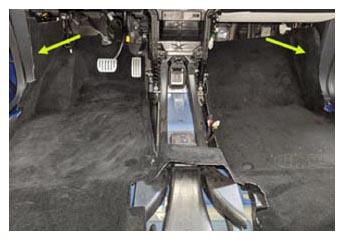

    G15397414Courtesy of TESLA, INC.
    G15397415Courtesy of TESLA, INC.
