Carpet - 1st Row - Remove And Replace: Install

  1. Position the 1st row carpet into the vehicle, position the LH and RH side sides of the carpet behind the front sill trims, and then install the clips (x2) that attach the carpet to the vehicle.

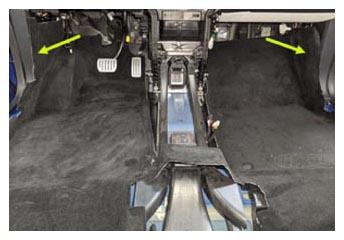

    G15397416Courtesy of TESLA, INC.

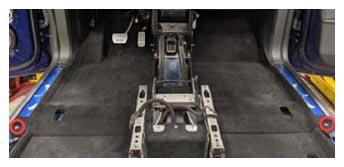

    G15397417Courtesy of TESLA, INC.
  2. Install the 1st row podium. See Podium - 1st Row (Remove and Replace) .
  3. Install the LH and RH front sill trims. See TRIM - SILL PANEL - FRONT - LH (REMOVE AND REPLACE) .
