Bracket - Center Console - Remove And Replace: Install

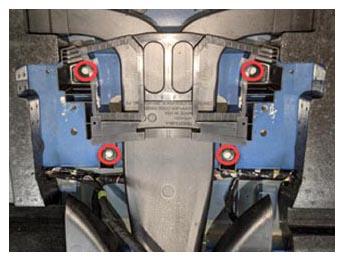

  1. Position the center console bracket on the vehicle, and then install the bolts (x4) that attach the bracket to the vehicle.

    6 N.m (4.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 4 in extension
    • 10 mm socket
    • Ratchet/torque wrench
    G15397212Courtesy of TESLA, INC.
  2. Install the 2nd row front floor panel. See Floor Panel - Front - 2nd Row (6 Seat) (Remove And Replace) .
  3. Install the 2nd row mid floor panel. See FLOOR PANEL - MID - 2ND ROW (6 SEAT) (REMOVE AND REPLACE) .
  4. Install the 2nd row floor mat. See FLOOR MAT - 2ND ROW (REMOVE AND REPLACE) .
  5. Install the 1st row podium. See Podium - 1st Row (Remove and Replace) .

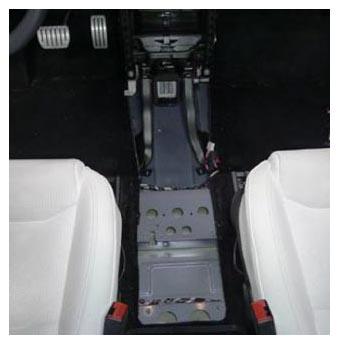

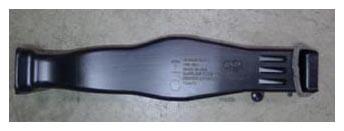

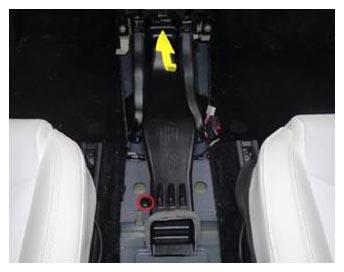

  6. Position the center console HVAC duct on the vehicle, and then install the brush clip that attaches the duct to the vehicle.
    NOTE: Slide the duct into the HVAC assembly and ensure the duct is fully seated.
    G15397225Courtesy of TESLA, INC.
    G15397226Courtesy of TESLA, INC.
    G15397227Courtesy of TESLA, INC.

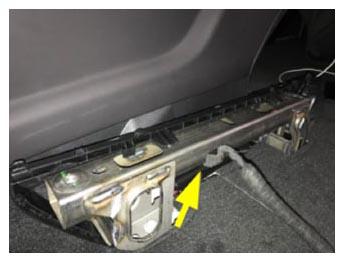

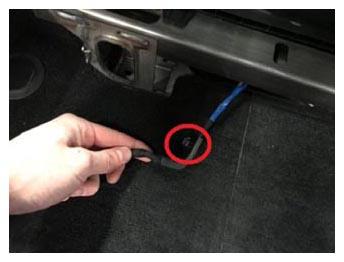

  7. Install the clips (x2) that attach the LH front seat harness to the inner seat riser.
    G15397231Courtesy of TESLA, INC.
    G15397230Courtesy of TESLA, INC.

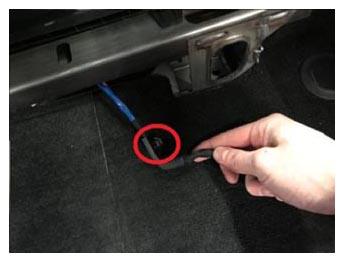

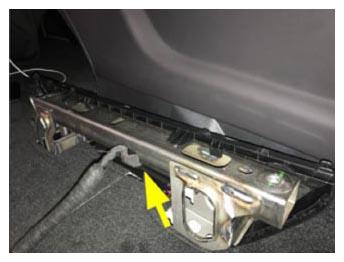

  8. Install the clips (x2) that attach the RH front seat harness to the inner seat riser.
    G15397229Courtesy of TESLA, INC.
    G15397228Courtesy of TESLA, INC.
  9. Install the driver and passenger seat outer risers. See Riser - Outer - Driver Seat (Remove and Replace) .
  10. Install the 1st row center console assembly. See CENTER CONSOLE ASSEMBLY - 1ST ROW (REMOVE AND INSTALL) .
  11. Install the RH 1st row seat assembly. See Seat Assembly - 1st Row - RH (Remove And Install) .
  12. Install the LH 1st row seat assembly. See Seat Assembly - 1st Row - LH (Remove and Install) .
  13. Install the LH and RH rear sill panel trims. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  14. Install the LH and RH front sill panel trims. See TRIM - SILL PANEL - FRONT - LH (REMOVE AND REPLACE) .
  15. Calibrate the rear doors.
    NOTE: If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate  to calibrate the rear doors.
  16. Move the LH and RH front seats to original position.
  17. Raise the LH and RH front windows.
  18. Close the LH and RH front doors.
