T Badge Support - Fascia - Front - Remove And Replace: Install

Position the front T-badge onto the front fascia T-badge support, and then install the screws (x2) that attach the T-badge to the T-badge support.
1.8 N.m (1.3 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

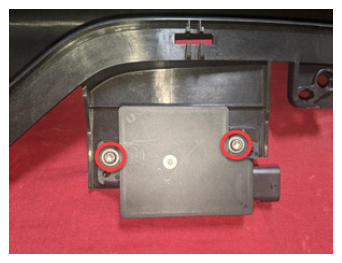

Position the front BLE module onto the front fascia T-badge support, and then install the screws (x2) that attach the module to the assembly.
3 N.m (2.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
Courtesy of TESLA, INC.
Position the front fascia V-bar onto the front fascia T-badge support, and then secure the clips (x4) that attach the V-bar to the T-badge support.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the screws (x2) that attach the front fascia V-bar to the front fascia T-badge support.
3 N.m (2.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
Courtesy of TESLA, INC.

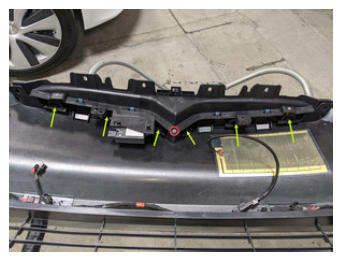

Position the front fascia T-badge support assembly onto the front fascia assembly, and then install the screw and secure the tabs (x6) that attach the T-badge support to the front fascia.
3 N.m (2.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

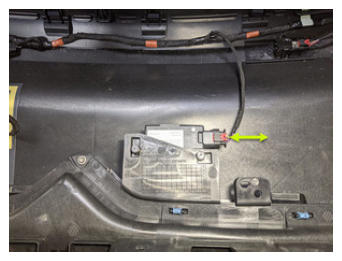

Connect the front BLE module electrical connector, and then engage the locking tab.

Courtesy of TESLA, INC.
Install the front fascia assembly. See FASCIA ASSEMBLY - FRONT (REMOVE AND INSTALL) .
Raise the front windows and close the LH front door.
