Fascia Assembly - Rear - Lower Remove and Replace: Remove

Remove the rear fascia assembly from the vehicle. See: Fascia Assembly - Rear - Remove And Install .

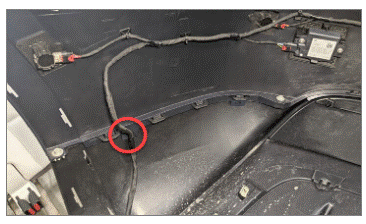

Release the park assist harness from the rear lower fascia.

Courtesy of TESLA, INC.

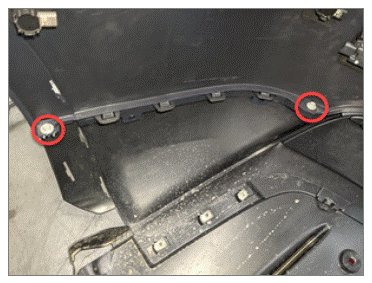

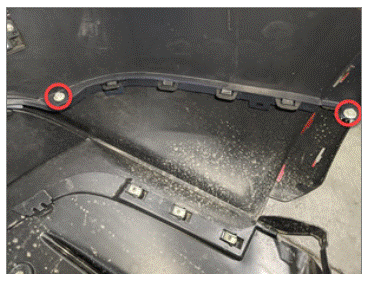

Remove the screws (x4) that attach the upper rear fascia assembly to the lower rear fascia assembly.
5 N.m (3.7 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

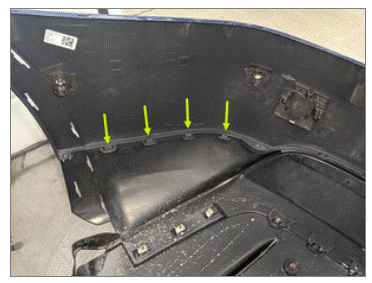

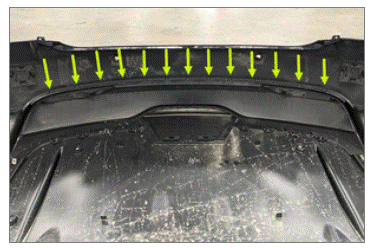

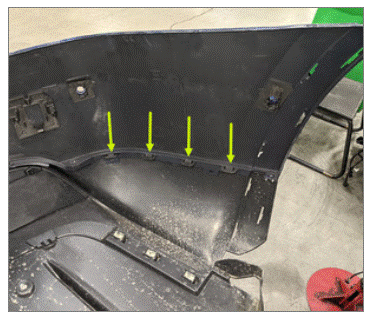

Release the tabs (x21) that attach the upper rear fascia assembly to the lower rear fascia assembly, and then remove the upper assembly from the lower assembly.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Remove the trailer hitch cover. See Cover - Trailer Hitch (Remove and Replace).

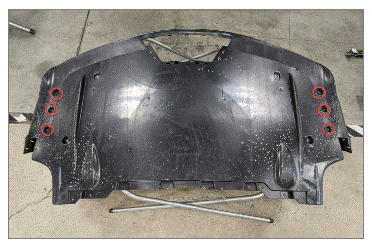

Remove the bolts (x6) that attach the lower rear fascia to the rear diffuser.
5 N.m (3.7 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

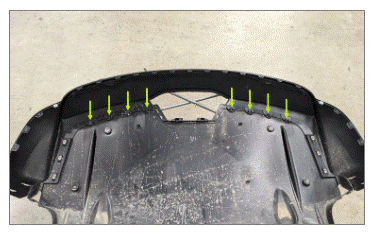

Release the tabs (x8) that attach the lower rear fascia to the rear diffuser.

Courtesy of TESLA, INC.
Remove the LH and RH rear reflex lamps. See: LAMP - REFLEX - REAR - LH - REMOVE AND REPLACE .
