Bumper Beam - Front - Remove And Replace: Install

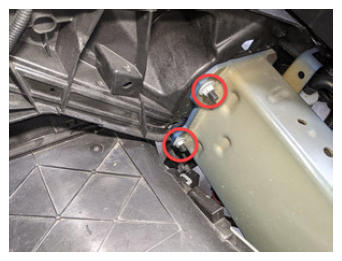

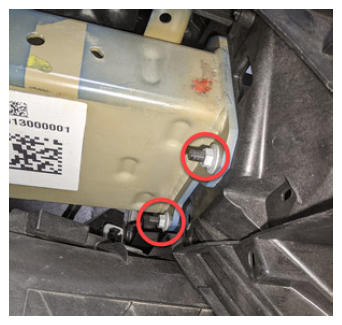

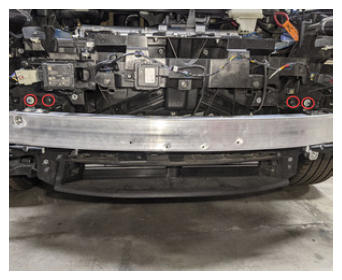

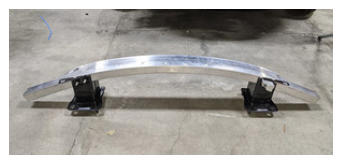

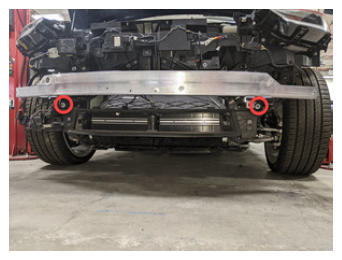

With an assistant, install the nuts (x8) and the bolts (x2) that attach the front bumper beam to the body studs.
NOTE: Torque: 60 N.m nuts, 9 N.m bolts

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- 15 mm deep socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the front bumper beam foam. See FOAM - BUMPER BEAM - FRONT (REMOVE AND REPLACE) .
Install the front fascia assembly. See FASCIA ASSEMBLY - FRONT (REMOVE AND INSTALL) .
