Air Extractor - Rear - Outer - LH - Remove And Replace: Install

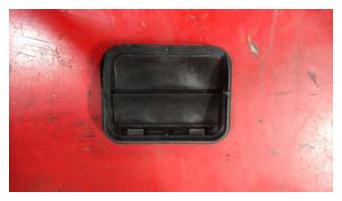

Install the LH outer rear air extractor to vehicle.

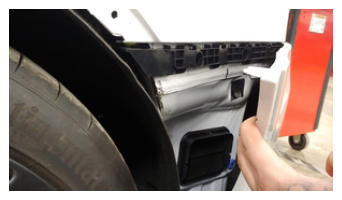

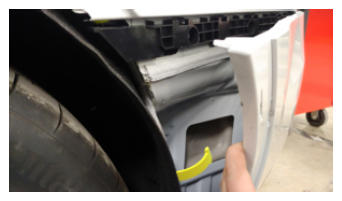

NOTE: Pull back the rear fascia from the LH quarter panel and line up the air extractor with the body.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

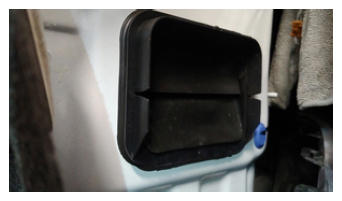

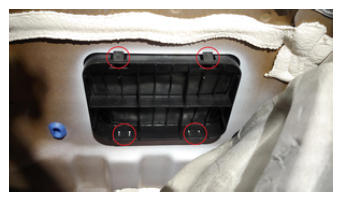

Secure the LH outer rear air extractor fully to the vehicle.
NOTE: Clips (x4).

NOTE: Press firmly on the extractor and verified all points are properly installed.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

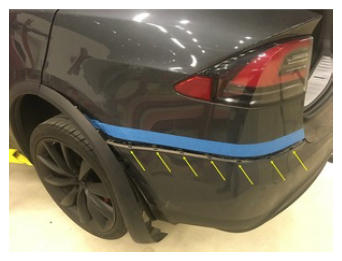

Secure the clips (x12) that attach the LH rear fascia to the body.

Courtesy of TESLA, INC.

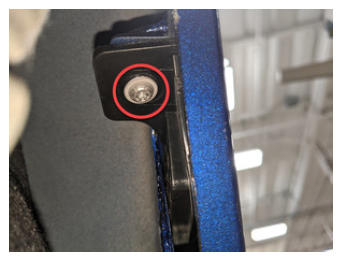

Install the screw that attach the LH rear fascia to the quarter panel.
1.5 N.m (1.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T25 bit
Courtesy of TESLA, INC.
Install LH rear fender garnish. See Garnish - Fender - Rear - LH (Remove and Replace) .

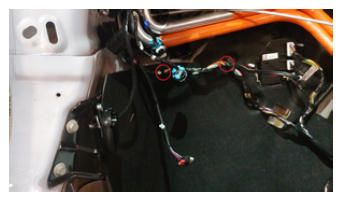

Install the clips (x2) that attach the LH rear wheel house absorber.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

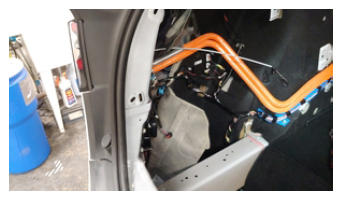

Install the LH trunk trim bracket. See Bracket - Trim - Trunk - LH (Remove and Replace) .
