12V Power Socket - Rear Trunk - Remove And Replace: Remove

  1. Remove the RH trunk side trim from the vehicle. See Trim - Side - Trunk - RH (Remove and Replace) .

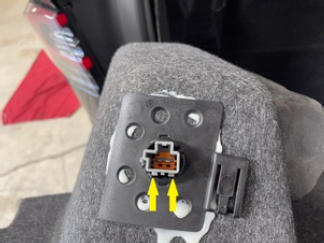

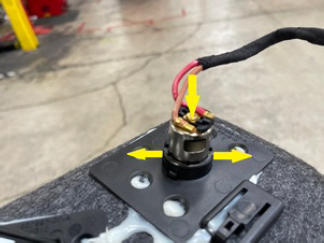

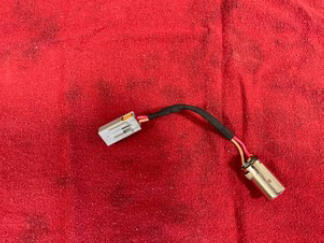

  2. Line up the connector with the slots in the rear trunk 12V power socket, release the tabs (x2) that attach the socket to the RH trunk side trim, and then feed the connector through the opening to remove it.
    G15437903Courtesy of TESLA, INC.
    G15437904Courtesy of TESLA, INC.
    G15437905Courtesy of TESLA, INC.
