Side Repeater - Front - LH - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift .
  3. Remove the LH front wheel. See Wheel (Remove and Install) .
  4. Remove the LH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace) .

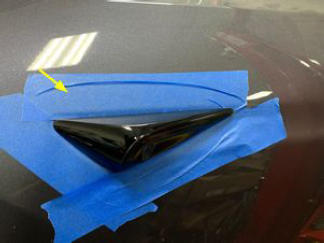

  5. Apply masking tape to the LH fender at edges of LH front side repeater.
    G15438143Courtesy of TESLA, INC.

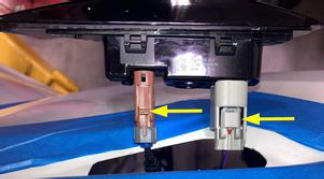

  6. Disconnect the LH front side repeater and camera electrical connectors (x2).

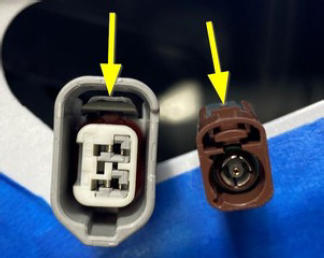

    NOTE: For the left/gray connector, gently slide the connector out slightly until the locking tab catches, and then press the tab down where indicated to release. For right/brown connector, press the locking tab down where indicated by arrow to release.
    G15438144Courtesy of TESLA, INC.
    G15438145Courtesy of TESLA, INC.

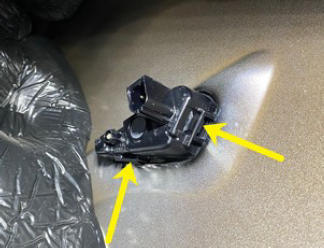

  7. Press the tabs (x2) that attach the LH front side repeater to the vehicle while prying the repeater away from the LH fender to release it, and then remove the repeater from the vehicle.
    CAUTION: If reinstalling the same side repeater, take care not to damage the mounting tabs.
    G15438146Courtesy of TESLA, INC.
