Taillight - LH - Remove And Replace: Remove

  1. Remove the charge port assembly. See Charge Port (Remove and Replace) .

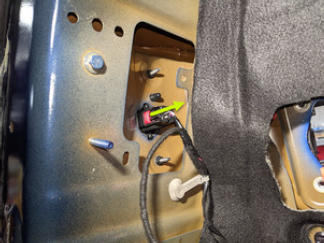

  2. Release the locking tab, and then disconnect the LH taillight electrical connector.
    G15438251Courtesy of TESLA, INC.

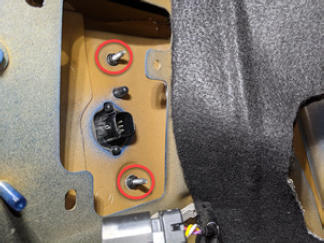

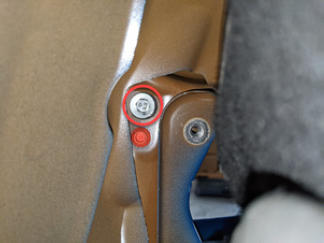

  3. Remove the fasteners (x3) that attach the LH taillight to the vehicle, and then remove the taillight from the vehicle.

    2.5 N.m (1.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 8 mm socket
    G15438252Courtesy of TESLA, INC.
    G15438253Courtesy of TESLA, INC.

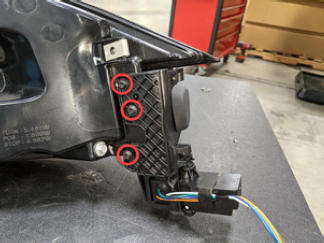

  4. Remove the bolts (x3) that attach the charge port door assembly to the LH taillight assembly, and then remove the charge port door from the taillight assembly.

    1.3 N.m (1.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    G15438254Courtesy of TESLA, INC.
