Decor - Instrument Panel - Main - Remove And Replace: Install

  1. Position the main instrument panel decor onto the instrument panel, connect the electrical connectors (x4), and then secure the clips (x21) that attach the decor to the instrument panel.
    NOTE: Secure each IP decor connector clip to IP carrier.

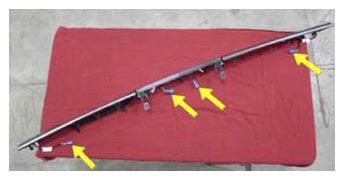

    G15394577Courtesy of TESLA, INC.

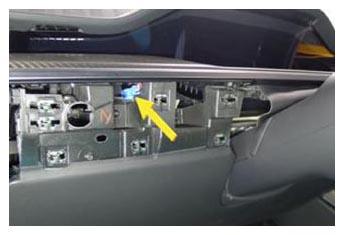

    G15394578Courtesy of TESLA, INC.

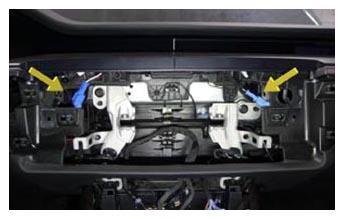

    G15394579Courtesy of TESLA, INC.

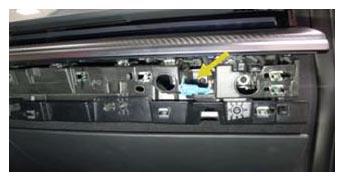

    G15394580Courtesy of TESLA, INC.

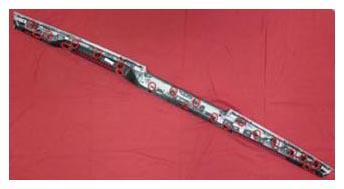

    G15394581Courtesy of TESLA, INC.
  2. Install the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  3. Install the RH IP end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  4. Install the instrument panel RH middle trim. See TRIM - MIDDLE - INSTRUMENT PANEL - RH (REMOVE AND REPLACE) .
  5. Install the touchscreen assembly. See Touchscreen (Remove and Replace) .
  6. Install the LH instrument panel middle trim. See TRIM - MIDDLE - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  7. Install the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  8. Install the LH IP end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  9. Move the steering column to the original position.
  10. Calibrate the rear doors.
    NOTE: If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate  to calibrate the rear doors.
