Pump - Windshield Washer Reservoir - Remove And Replace: Install

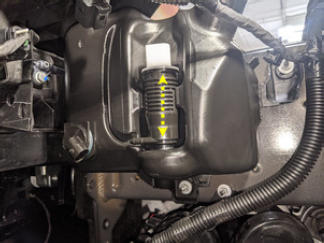

  1. Position the windshield washer reservoir pump into the vehicle, and then install the pump into the windshield washer reservoir.
    NOTE: Fully seat the pump into the grommet and face the hose coupling forward.
    G15438351Courtesy of TESLA, INC.

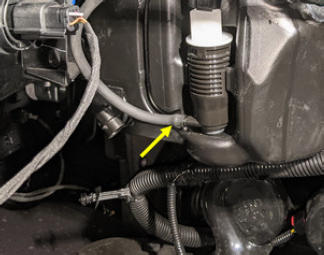

  2. Connect the reservoir washer hose from windshield washer reservoir pump.
    G15438352Courtesy of TESLA, INC.

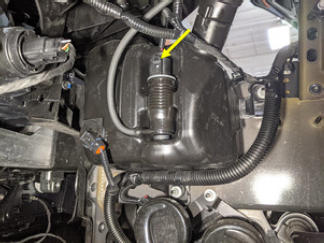

  3. Connect the windshield washer reservoir pump electrical connector.
    G15438353Courtesy of TESLA, INC.
  4. Install the LH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace) .
  5. Install the LH front wheel. See Wheel (Remove and Install) .
  6. Install the LH underhood apron. See Underhood Apron - LH (Remove and Replace) .
  7. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .

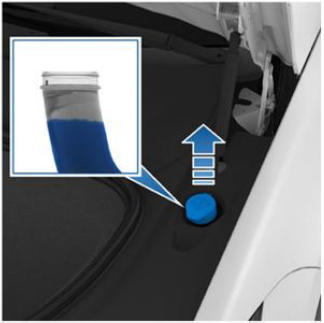

  8. Fill the windshield washer reservoir until the fluid level is visible just below the filler neck.
    G15438354Courtesy of TESLA, INC.
  9. Close the hood.
  10. Remove the vehicle from the lift. See Raise Vehicle - 2 Post Lift .
  11. Raise the LH front window and close the LH front door.
