Hinge - Door - Front - Lower - LH - Remove And Replace: Remove

  1. Open the LH front door and lower the front windows.

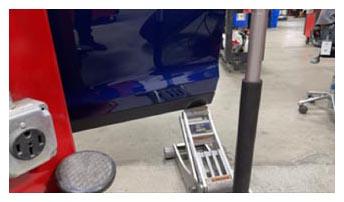

  2. Use a floor jack to support the LH front door.
    CAUTION: Protect painted surface with a soft object.
    G15391107Courtesy of TESLA, INC.

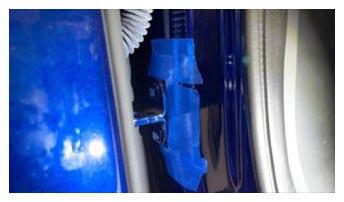

  3. Tape the LH lower front door hinge area on the body side to mark the hinge location.
    G15391108Courtesy of TESLA, INC.

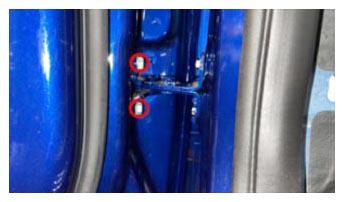

  4. Remove the bolts (x2) that attach the LH lower front door hinge to the LH front door.

    24 N.m (17.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 12 mm socket
    G15391109Courtesy of TESLA, INC.

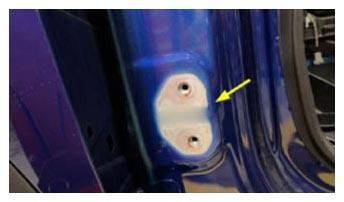

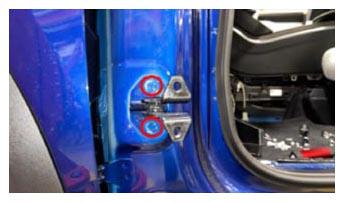

  5. Remove the bolts (x2) that attach the LH lower front door hinge to the body, and then remove the hinge from the vehicle.

    25 N.m (18.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 12 mm socket
    G15391110Courtesy of TESLA, INC.
    G15391111Courtesy of TESLA, INC.
