Sensor - Parking Distance - Outer - Front - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Press the brake pedal to turn on drive rails.
  3. Use the touchscreen to set the air suspension ride height to "Very High".
  4. Use the touchscreen to set the air suspension into "Jack Mode".
  5. Turn the steering wheel fully to the right.
  6. Disconnect LV Power. See LV POWER (DISCONNECT AND CONNECT) .
  7. Remove the LH front fender garnish, but do not remove the wheel fairing from the garnish. See Garnish - Fender - Front - LH (Remove and Replace) .
  8. If servicing sensors S2 or S5:  Release the clips (x6) and push nut that attach the front portion of the LH front wheel arch liner to the vehicle.
    G15437851Courtesy of TESLA, INC.
    G15437852Courtesy of TESLA, INC.
  9. Move the liner aside for access.

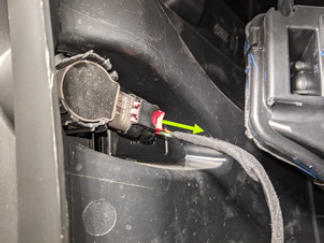

  10. Release the connector lock, and then disconnect the LH front outer parking distance sensor electrical connector.
    CAUTION: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
    G15437853Courtesy of TESLA, INC.

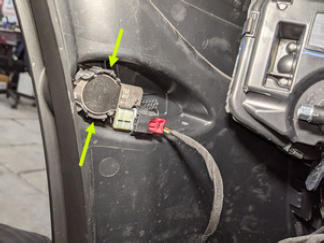

  11. Release the securing tabs (x2), and then remove the LH front outer parking distance sensor from the front fascia assembly.
    G15437854Courtesy of TESLA, INC.
