Taillight - LH - Remove And Replace: Install

  1. Position the charge port door assembly to the LH taillight assembly, and then install the bolts (x3) that attach the charge port door to the taillight assembly.

    1.3 N.m (1.0 ft-lbs)

    NOTE: Verify the locating studs are correctly aligned.
    NOTE: Ensure the charge port door cycles without contacting the taillight.

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket

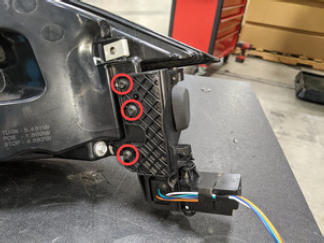

    G15438255Courtesy of TESLA, INC.

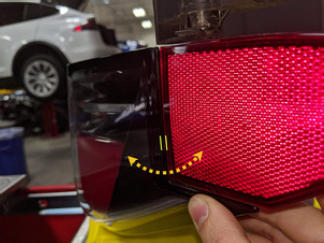

    G15438256Courtesy of TESLA, INC.
  2. Position the LH taillight assembly into the vehicle, and then install the fasteners (x3) that attach the assembly to the vehicle.

    2.5 N.m (1.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 8 mm socket

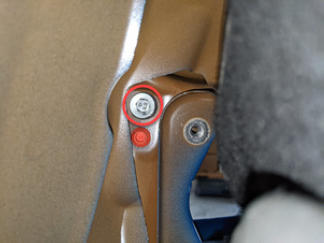

    G15438257Courtesy of TESLA, INC.

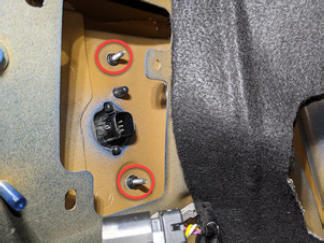

    G15438258Courtesy of TESLA, INC.
  3. Connect the LH taillight electrical connector, and then secure the connector lock.

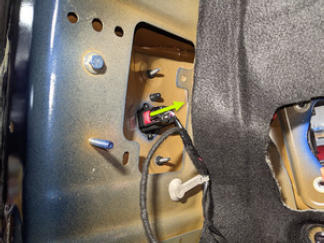

    G15438259Courtesy of TESLA, INC.
  4. Install the charge port assembly. See Charge Port (Remove and Replace) .
