Sensor - Parking Distance - Inner - Rear - Remove And Replace: Remove

  1. On the vehicle touchscreen, touch Controls > Service > Jack Mode  to activate Jack Mode.
  2. Disconnect LV Power. See LV POWER (DISCONNECT AND CONNECT) .
  3. Remove the rear fascia assembly from the vehicle. See Fascia Assembly - Rear (Remove and Install) .
  4. Release the connector lock, and then disconnect the rear inner parking distance sensor.
    CAUTION: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
    G15437844Courtesy of TESLA, INC.
    G15437845Courtesy of TESLA, INC.

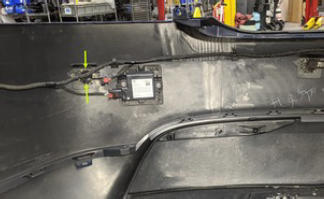

  5. Release the tabs that attach the rear inner parking distance sensor to the rear fascia assembly, and then remove the sensor from the assembly.
    G15437846Courtesy of TESLA, INC.
