Seal - Outer Belt - Rear Door - LH - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Starting from the rear edge, lift and roll the LH rear door outer belt trim outward slowly and evenly to remove it from the LH rear door assembly.
    CAUTION: Be careful not to bend or damage components.

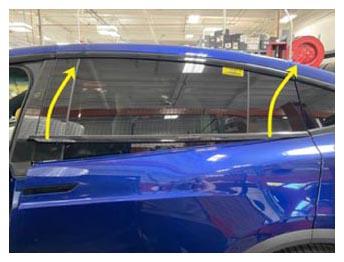

    G15392696Courtesy of TESLA, INC.

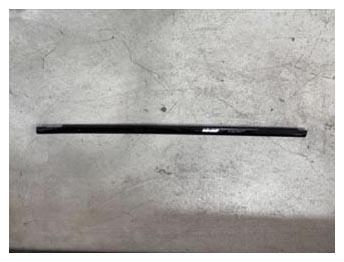

    G15392697Courtesy of TESLA, INC.
